DBX 260 Speaker System Processor

OUR PART #: DRIVERACK-260 MFR #: DBX260V

Copied to clipboard

The choice of countless tour sound professionals and installation contractors. The dbx legacy of unrivaled system/loudspeaker control continues with the DriveRack 260. ...Read more

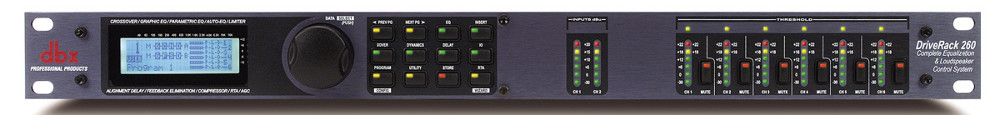

DBX 260 Speaker System Processor Image 1
DBX 260 Speaker System Processor Image 2
DBX 260 Speaker System Processor
Our Price: $825.00
List Price: $1,028.13
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$23/mo* with 36 month financing. ‡
Limited Time. Learn How
More On Order! Due to high demand, this item has a backorder of over 21 days. Call our Sales Pros at 800-356-5844 for more information.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The choice of countless tour sound professionals and installation contractors.

The dbx legacy of unrivaled system/loudspeaker control continues with the DriveRack 260. It capitalizes on the road-tested and contractor-approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full-time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control (via dbx's ZC series controllers, sold separately) and the patent-pending Advanced Feedback Suppression (AFS™).

The DriveRack 260 delivers state-of-the-art signal processing via an easy-to-operate user interface. High quality processing has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, automatic feedback eliminator and dbx's highly regarded 120A Subharmonic Synthesizer on the input, with a six-channel output system that includes parametric EQs, patented PeakStopPlus® limiters (to provide protection against speaker blowouts) and alignment delay. These features, combined with the Wizard setup system and complete DriveWare™ GUI control, represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

Features

  • Feedback elimination
  • 2.7 seconds of alignment and zone delay
  • Classic dbx compression and limiting
  • Setup wizard with JBL speaker & Crown power amp tunings
  • Pink noise generator and fulltime RTA

Specifications

  • Analog Inputs:
    • Number of Inputs: (2) Line inputs. (1) RTA Mic input
    • Connectors: (2) Female XLR line inputs. XLR RTA Mic input
    • Type: Electronically balanced/RF filtered
    • Impedance: > 40 kΩ
    • Max Input line level: +34 dBu with input jumpers in +30 position
    • CMRR: > 45 dB
    • RTA Mic Phantom Voltage: +15 VDC
    • RTA Mic EIN: < -110 dBu, 22 Hz - 22 kHz, 150 Ω
  • Analog Outputs:
    • Number of Outputs: 6
    • Connectors: Male XLR
    • Type: Electronically balanced, RF filter
    • Impedance: 120 Ω
    • Max Output Level: +22 dBu
  • A/D Performance:
    • Type: dbx Type IV® conversion system
    • Dynamic Range Line:
      • > 113 dB A-weighted
      • > 110 dB unweighted
    • Type IV® Dynamic Range:
      • > 119 dB, A-weighted, 22 kHz BW
      • > 117 dB, A-weighted, 22 kHz BW
    • Sample Rate: 48 kHz
  • D/A Performance:
    • Dynamic Range: 112 dB A-unweighted, 109 dB unweighted
  • System Performance:
    • Dynamic Range: >110 dB unweighted, >107 dB weighted
    • THD + N: 0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
    • Frequency Response: 20 Hz - 20 kHz, ±0.5 dB
    • Interchannel Crosstalk: > 110 dB, 120 dB typical
    • Crosstalk Input to Output: > 100 dB
  • Power Supply:
    • Operating Voltage (domestic): 100-120 VAC 50/60 Hz
    • Power Requirements: 25 W
  • Dimensions (H x W x D): 1.75" x 19" x 7.875"
  • Weight: 5.5 lbs. (2.5 kg)
