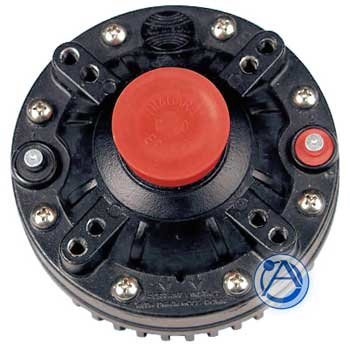

Atlas IED PD5VH Compression Driver 40 W, 16 Ohms

Model PD-5VH is a 40-watt driver with 2" voice coil machined to optimum tolerances.

Model PD-5VH has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110 - 4,100 Hz (+5dB).

The durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"–18 male coupling thread.

Units are finished in grey, baked epoxy.

Features

• Extended Frequency Response Range for Optimum Intelligibility
• Environment-Resistant Construction for Indoor/Outdoor Use
• 40-Watt Power Rating
• Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction

Specifications

• Height 5"(13.02 cm)
• Width 4" (11.11 cm)
• Shipping Weight 5.00 lbs (2.27 kg)
• Frequency Response 110 - 4,100 Hz
• Impedance 16 ohms
• Power Rating 40W
• Sensitivity 110.7 (avg) 110 - 4,100 Hz (+5dB)
