Marshall Electronics V-R43P
Triple 4" Rack Mounted LCD Panel with 2 Composite Video inputs per Screen, Tally, Loop through and Auto NTSC/PAL Detection

OUR PART #:  V-R43P

The V-R43P is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels.
Learn More
Our Price: $1,079.00
List Price: $1,309.00
Call for Special Sale Price!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-R43P
Qty:
In Stock

Similar Products

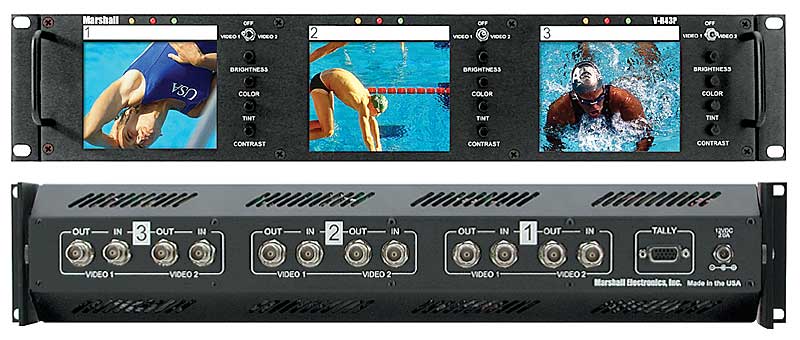

The V-R43P is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels. Each of the three 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has an on/off switch, two composite video inputs with active loop through feature, a self-powered 3 color tally system, and auto-recognition of NTSC or PAL video formats. This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

Features

  • High Resolution, 480 × 234 pixels, 112,320 total
  • Ultra-compact design fits in EIA standard rack 2U high
  • Ultra bright panels with 300 candle luminance each
  • Each screen has 2 Composite Video inputs with activeloop through feature
  • Automatic NTSC/PAL Video Signal Detection
  • Unique 100 degree tilt adjustment while mounted inrack
  • Three color, self-powered tally system provided foreach panel
  • Dry Erase Marker for EZ Identifying of screens is included
    Specifications
    • Display (Viewing Area): 4" (3.23" x 2.43")
    • Resolution (Pixels): 480 H x 234 V
    • Dot Pitch: 0.171mm x 0.264mm
    • Brightness: 300 cd/m²
    • System: NTSC/PAL auto recognition
    • Inputs per panel (total): 2 (6) Composite
    • Dimensions (W x H x D): 19.12" x 3.43" x 1.9"
    • Approx. Weight: 3.5 lbs
    • Power Consumption: 12 VDC, 2.0 Amps max
