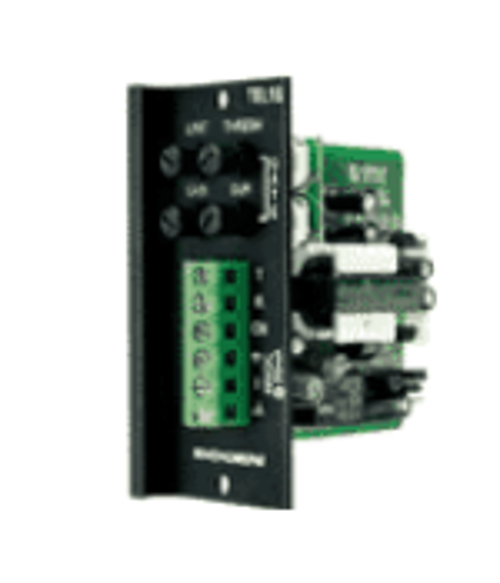

Bogen Communications TEL1S
Loop-Start/Ground-Start Trunk/Paging Interface, Screw Terminal


Telephone interface input module.
Learn More
Our Price: $66.02
List Price: $90.00
You save 27%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Bogen Communications TEL1S
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Telephone interface input module.

Bogen Communication's Telephone Input Module (TEL1S) has a transformer-isolated, balanced input and configuration jumpers that allow it to interface with both wet and dry loop telephone systems. In the dry loop mode, it allows connections to page port systems. In the wet mode of operation, it allows connections to both ground start and loop start telephone systems. The module has a 6-pin input barrier strip connector to make the input connection. It provides for the connection of an external talk-battery power supply of 48V DC. The module has a gain/trim control that allows the gain to be adjusted from 0 dB to 30 dB of gain. It has the ability to mute lower priority modules and be muted by higher priority modules. The module is able to assume any of 4 priority levels. It has a VOX/gating circuit to controlmuting of lower priority modules and its internal gating circuit with separate controls for gate threshold and duration. It has a built-in limiter to limit the maximum output level of the module, with a threshold control. The module’s output is assignable to either or both of two mixing buses.

Click to download
