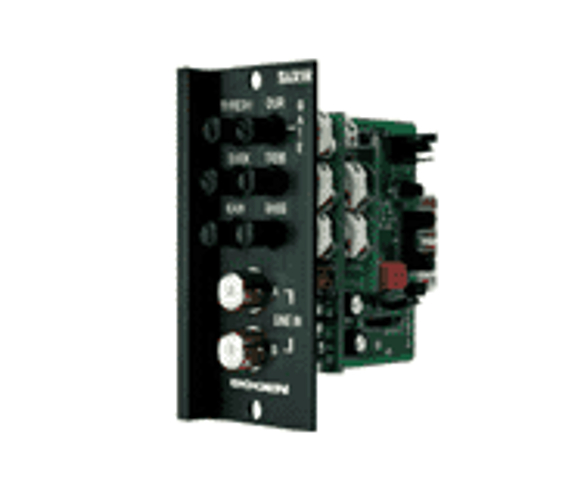

Bogen Communications SAX1R
Unbalanced Stereo Input Module, RCA

OUR PART #:  SAX1R

Unbalanced stereo input module. Stereo Aux Input Module (SAX1R): The SAX1R module is a stereo, high-impedance, unbalanced input module.
Learn More
Our Price: $54.40
List Price: $70.00
You save 22%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications SAX1R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Unbalanced stereo input module.

Stereo Aux Input Module (SAX1R): The SAX1R module is a stereo, high-impedance, unbalanced input module. It has two RCA jacks for its input connectors, and a gain/trim control that allows the gain to be adjusted up to +6 dB relative to 0 dB nominal gain. It has the ability to mute lower priority modules and be muted by higher priority modules. The module is able to assume any of 4 priority levels. It has a continuously variable ducking control that enables attenuation of the input signal from a minimum of 10 dB to a maximum of 48 dB relative to the normal unmuted condition and a gradual fade back from mute when the mute control is deactivated. The module has a VOX/gating circuit to control muting of lower priority modules and its internal gating circuit, with separate controls for gate threshold and duration. It has bass and treble controls with cut or boost of 10 dB at 100 Hz and 10 kHz, respectively. The module’s output  is assignable to either or both of two mixing buses.  It allows stereo sources to be mixed into mono and sent to either or both of two mix buses.

Bogen Communications SAX1R Features:

  • Gain/Trim control
  • Bass& Treble controls
  • Gate feature mutes lower priority modules
  • Mute send& receive
  • Variable ducking level when muted
  • Fade back from mute
  • Stereo-to-mono summing option
  • 4 Priority levels
  • Bus assignable
  • RCA connectors

Bogen Communications SAX1R Specifications:

  • Gain: 0 dB to 6 dB
  • Frequency Response: +0/-3 dB, 5 Hz - 100 kHz
  • S/N (20Hz - 20kHz): -100 dBV
  • Distortion:< 0.005%, 20 Hz - 20 kHz
  • Input Impedance: 50k ohms
  • Tone: ±10 dB @ 100 Hz& 10 kHz
  • Ducking (level): -10 dB to -48 dB
  • Gate Threshold: 3 mV to 30 mV
  • Gate Duration: 0.5s to 5s
  • Priority: Four levels
  • Controls: Gain, Bass,Treble, Ducking, Gate Threshold,Gate Duration
  • Connector: RCA type
  • Power: ±24 V DC
  • Dimensions (W x H x D): 1-3/8" x 3-1/8" x 3-1/2"
  • Weight: 2.6 oz. < /UL >
