Bogen Communications BAL2S
Input Module Stereo Balance


Input Modules for use with M300/450/600 and V35/V60/V150/V250 Model Amplifiers.
Learn More
Our Price: $50.77
List Price: $60.74
You save 16%!
Write the first review.
Bogen Communications BAL2S
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Input Modules for use with M300/450/600 and V35/V60/V150/V250 Model Amplifiers.

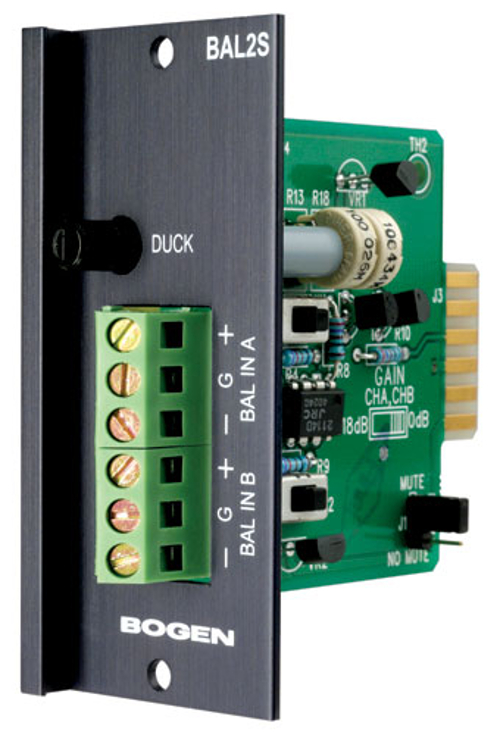

Balanced Input Module (BAL2S): The BAL2S input module is a stereo, high-impedance, electronically balanced input module. It's mutable by higher priority modules and features an internal PCB jumper to enable or disable muting from the priority bus system. It has a continuously variable ducking control that enables attenuation of the input signal from a minimum of 10 dB to a maximum of 48 dB relative to the normal unmuted condition.

The module has a rapid mute when the mute function is activated and a gradual fade back from mute when the mute control is deactivated.  Gain can be switch selectable per channel and can be 0 dB or +18 dB.

Bogen Communications BAL2S Features:

  • Stereo, high-impedance, balanced inputs
  • Professional-quality, low noise performance
  • Selectable gain of 0 or 18 dB
  • Mutable by higher priority modules
  • Variable ducking level when muted
  • Fade back from mute
  • Screw terminal connections

    Bogen Communications BAL2S Specifications:

    • Gain: 0 dB (or +18 dB; switch selectable per channel)
    • Frequency Response: +0/-3 dB, 5 Hz-100 kHz
    • S/N (20 Hz - 20 kHz): -100 dBV
    • Distortion: < 0.005%
    • Input Impedance: 10k ohms (unbalanced); 20k ohms (balanced)
    • Ducking (level): -10 dB to -48 dB
    • CMRR: > 80 dB @ 1 kHz
    • Controls: Ducking
    • Priority: Lowest or none
    • Connector: 6-position barrier strip
    • Power: ┬▒24 V DC
    • Dimensions (WxHxD): 1-3/8" x 3-1/8" x 3-1/2"
    • Weight: 2.8 oz.
