Bogen V60 Power Vector Modular Amplifier 60W

OUR PART #: V60 MFR #: V60

Copied to clipboard

Bogen's Power Vector modular amplifiers offer a wide range of power from which to choose from, with five models ranging from 35W to 250W. ...Read more

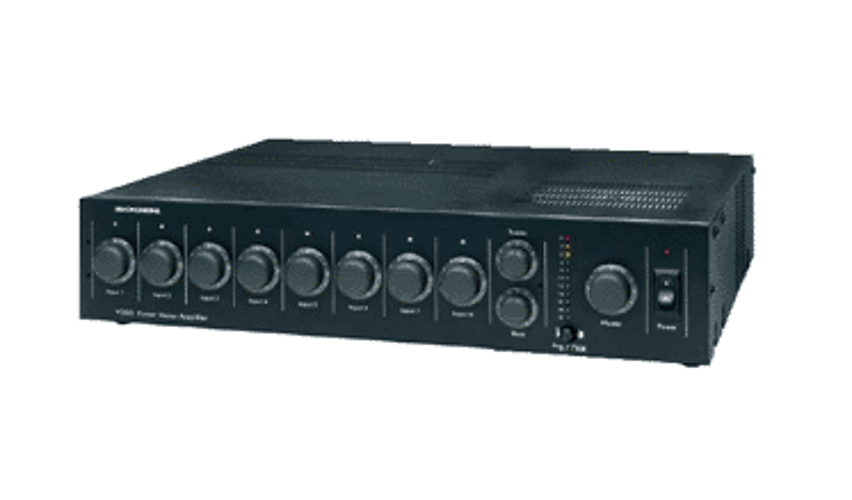

Bogen V60 Power Vector Modular Amplifier 60W Image 1
Bogen V60 Power Vector Modular Amplifier 60W
Our Price: $601.15
List Price: $1,124.20
You save 47%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$17/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Bogen's Power Vector modular amplifiers offer a wide range of power from which to choose from, with five models ranging from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems.

Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status.An11-segment LED output meter monitors output signal level.

Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Bogen Communications V60 Features:

  • 5 models ranging from 35W to 250W with a large powerreserve
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speakerloads
  • 8 module bays
  • Wide selection of advanced plug-in modules
  • 2 module bays capable of handling signal processingplug-in output modules
  • 4 levels of priority between modules
  • 11-segment LED output level meter monitors the outputlevel of the power amplifier with Peak and Average meter switch
  • Motorized master volume control that can be remotelyoperated
  • Bass and treble controls
  • Two-color LED for each channel indicates inputactive/clipping
  • Lockable switch permits user to select eithertransformer- coupled outputs or a direct low-impedance output
  • 5-position barrier strip, with clamping washers,provides connections for speaker loads
  • Master mute function overrides all audio from themixer section of the amplifier
  • Screw terminal for master mute and remote volumecontrol functions
  • Each of the 8 module bays has an associatedindependent volume control
  • Bass and treble control bypass switch (located inmodule bay 6)
  • 125 Hz Lo-cut feature (switch located in module bay 6)
  • Signal processing insert jacks allow externalequipment to be inserted between the pre-amp output and the power amp input
  • Pre-EQ unbalanced buffer output signal “post” all unitcontrols, but “pre” any external signal processing equipment connected
  • Grounded, unswitched AC convenience receptacle with a500W maximum capacity provided for external equipment
  • Remote volume control panel (RVCP) (sold separately)
  • Security cover to protect volume, bass, and treblecontrols (PVSC) (sold separately)
  • Rack mountable (rack mounting kit RPK87 soldseparately)
  • 2 rack spaces high (3-1/2")

Bogen Communications V60 Specifications:

  • Power Output (RMS):
    • Rated: 60W
    • Typical @ 1 kHz: 85W
  • Frequency Response:
    • Transformer: 45-20 kHz; 0/-2dB
    • Direct: 20-20 kHz; 0/-1 dB
  • Distortion:
    • Transformer: 0.5%
    • Direct: 0.1% (.05 typical @ 1 kHz)
  • Signal-to-Noise:
    • Fundamental: -94dB
    • With Aux Module: -70 dB
    • With Mic Module: -60 dB
    • With Tel Module: -70 dB
  • Tone Controls:
    • Bass Frequency: 100 Hz (+/- 10 dB minimum)
    • Treble Frequency: 10 kHz (+/- 10 dB minimum)
    • Low Cut Frequency: 125 Hz @ -6 dB/octave
  • Sensitivity: 0.4V (at module bay connector)
  • Output Regulation: 2 dB or better, no load to full load
  • Output Impedance:
    • Transformer-Coupled: 70V, 25V, 8ohms (bal or unbal)
    • Direct Coupled: 4 ohms
  • Inserts:
    • Insert "OUT" Level: 1VRMS(@FRP)
    • Insert "OUT" Impedance: 50 ohmsmaximum
    • Insert "IN" Sensitivity:1VRMS
    • Insert "IN" Impedance: 10k ohms minimum
  • Pre-EQ Output:
    • Output Level: 4VRMS(@FRP)
    • Output Impedance: 50 ohms maximum
  • AC Power Receptacle: 500 watts maximum power, unswitched
  • AC Voltage: 120V AC, 60Hz
  • AC Current: 1.3A
  • Dimensions (W x H x D): 16.5" x 3.5" x 12"
  • Weight: 28 lbs.
