Radio Design Labs PT-AMG2
Audio Generator/Monitor

OUR PART #:  PT-AMG2

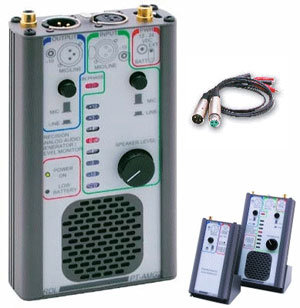

This portable audio instrument is comprised of a precision audio oscillator, precision level meter and speaker. The 700 Hz oscillator section features two outputs.
Learn More
Our Price: $310.54
List Price: $415.41
You save 25%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs PT-AMG2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This portable audio instrument is comprised of a precision audio oscillator, precision level meter and speaker.

The 700 Hz oscillator section features two outputs. The balanced XLR output is front-panel switch selectable for MIC or LINE level (pro level). The unbalanced output operates at -10 dBV (consumer). Output stability is suited to accurate bench top audio testing.

The audio metering circuit features two inputs, an LED meter and a monitor speaker. The balanced input is front-panel switch selectable for MIC or LINE input (pro). The unbalanced input operates at -10 dBV (consumer). Either input may be used to feed the metering circuit. For balanced +4 dBu inputs, meter 0 dB = +4 dBu. For unbalanced inputs, meter 0 dB = -10 dBV. A front-panel volume knob controls the speaker level. The IN PHASE LED illuminates when the oscillator output and metering input are in phase (0 dB level or greater). The PT-AMG2 operates either from two internal 9 volt batteries or from an external 12 Vdc to 30 Vdc supply. Test leads and bench top support bracket are included. The balanced line levels (input and output) may be preset by the user to +4 dBu or +6 dBu. < /FONT >

Features:

  • Portable or Bench Audio Generator, Meter and Monitor
  • Mic and Line-Level Audio Tone Oscillator with Metering
  • Selectable Mic / Line-Level Input and Output
  • Balanced and Unbal Connectorized Inputs/Outputs
  • Operation from Standard 9 Volt Batteries or 24 Vdc
  • +4 dBu or +6 dBu Precision Stable Reference Level

Typical Performance:

  • Outputs (2): XLR (front-panel selectable mic or line), Phono (consumer level)
  • Balanced Output Level (Selectable): Line: +4 dBu or +6 dBu* (2.5 kO load);  Mic: -46 dBu (2.5 kO load, 50 dB below +4 dBu)
  • Unbalanced Output Level: -10 dBV
  • Oscillator Frequency: 700 Hz nominal
  • Output Stability: Better than 0.01 dB
  • Inputs (2): XLR (front-panel selectable mic or line) Phono (consumer level)
  • Balanced Input Level (Selectable): Line: +4 dBu or +6 dBu*; Mic: -46 dBu (50 dB below +4 dBu)
  • Unbalanced Input Level: -10 dBV
  • *Reference Level Preset: Switch-selectable +4 dBu or +6 dBu
  • Power Requirement: 9 V internal (2) or 12 to 30 Vdc external @ 45 mA
Carrying Case, Nylon
Radio Design Labs PT-IC1 Carrying Case, Nylon
The PT-IC1 is a compact padded nylon instrument case for carrying one or two RDL® portable testers, power supplies and associated test leads. A carrying handle and shoulder strap are both provided. The cover features a zipper pouch for ...
