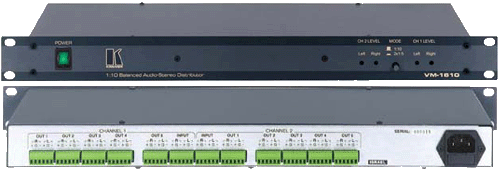

Kramer VM1610
1x10 or 2x5 Balanced Stereo Audio Distribution Amplifier

OUR PART #:  VM1610

The VM-1610 is a high performance distribution amplifier for balanced stereo signals.
Learn More
Our Price: $676.00
List Price: $845.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer VM1610
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VM-1610 is a high performance distribution amplifier for balanced stereo signals. It can also be configured as two 1:5 balanced stereo audio distribution amplifiers

Grouped Audio Level Controls.  Dual Mode - Configure as 1:10 or (2x1:5) 1:5 DAs.  SN Ratio - 92dB @ 1Vpp.  Standard 19” Rack Mount Size - 1U.

INPUTS:   2 balanced audio stereo, up to +24dBm/50kohm; on detachable terminal blocks.   OUTPUTS:   10 (or 2x5) balanced audio stereo, up to +24dBm/50ohm; on detachable terminal blocks.   AUDIO BANDWIDTH (-3dB):   100kHz.   GAIN RANGE:   0.5dB to + 9.5dB (four trimmers - two for each input channel).   AUDIO S/N RATIO:   92dB @ 1Vpp.   CHANNEL MATCHING:   60dB.   CONTROL:   Front selector switch for 1:10 or 2x1:5 operation, 4 front accessible gain trimmers.   COUPLING:   AC.   THD:   0.011% at 1kHz (second harmonic =0.003%).   POWER SOURCE:   230 VAC (115VAC U.S.A.), 21 VA.   DIMENSIONS:   19 inch (W), 7 inch (D), 1 U (H) rack mountable.   WEIGHT:   2.6 kg (5.7 lbs.) approx.   ACCESSORIES:   Power cord.
