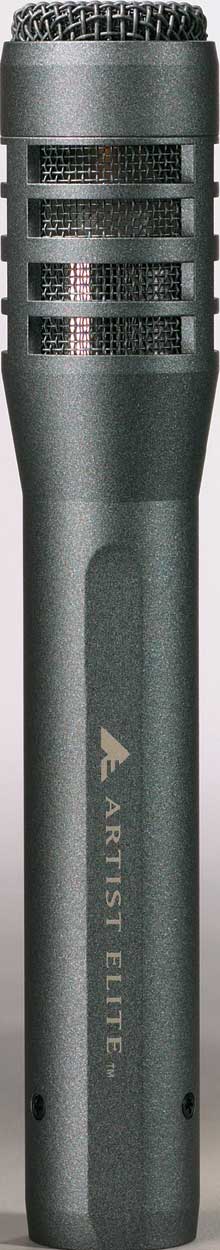

Audio-Technica AE5100
Large Diaphragm Cardioid Condenser Instrument Microphone

OUR PART #:  AE5100

The Artist Elite AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar...
Learn More
Our Price: $279.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AE5100
Qty:
In Stock

Similar Products

The Artist Elite AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments. With rich, warm, accurate sound, the AE5100 also incorporates the most essential ingredients for quality live sound in a choir microphone. Its large-diaphragm capsule delivers accurate, natural response, while its low-profile design permits innovative placement options. With a lower profile than the large studio microphones to which it compares sonically, the AE5100 offers an outstanding performance-to-size ratio. With its low noise and smooth response, the AE5100 is ideal for recording, too.

Audio-Technica AE5100 Features:

  • Large-diaphragm capsule delivers accurate and natural response
  • Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Robust design for enduring dependability on the road
  • Includes isolation clamp for shock protection, secure mounting and easy positioning
  • Integral 80 Hz HPF switch and 10 dB pad

Audio-Technica AE5100 Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardiod
  • Frequency Response: 20 Hz -20 kHz
  • Low Frequency Roll-off: 80 Hz, 12 dB/octave
  • Open Circuit Sensitivity: -36 dB (15.8 mV) re 1V at 1Pa
  • Impedance: 150 ohms
  • Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL with 10 dB pad (nominal)
  • Noise: 11 dB SPL
  • Dynamic Range (Typical): 137 dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 3.2 mA typical
  • Switches: High-pass filter; 10 dB pad (nominal)
  • Weight: 5.0 oz
  • Dimensions: 5.85" long, 1.02" maximum diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Accessories Furnished: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; soft protective pouch
