Product Overview

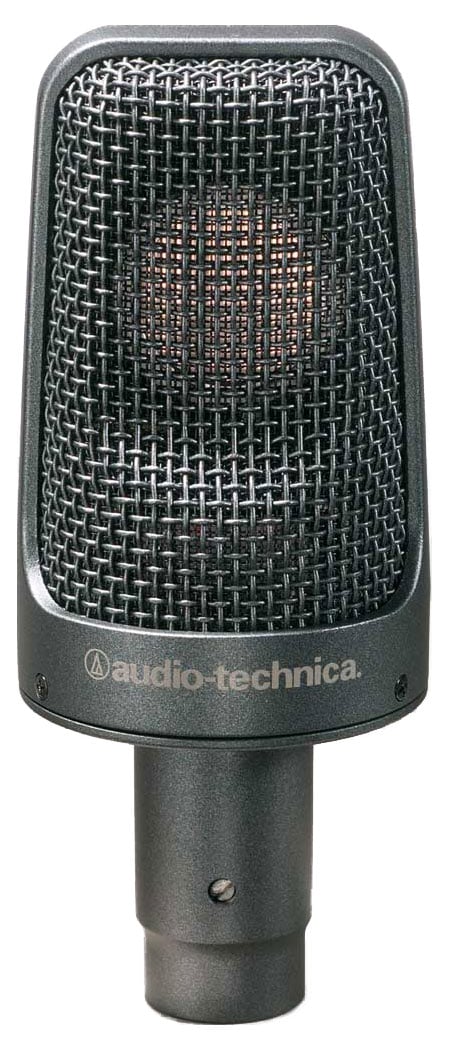

Providing supreme performance at extreme SPLs, the Artist Elite AE3000 is a high-SPL, large-diaphragm cardioid condenser instrument mic that excels in applications such as the miking of guitar cabinets, toms, snare, timpani and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
Applications
Guitar cabinets • Drums/overheads • More
Includes
- Artist Elite AE3000 microphone
- AT8471 isolation clamp for ⅝"-27 threaded stands
- ⅝"-27 to ⅜"-16 threaded adapter
- Soft protective pouch
Features
- Excels in high-SPL applications
- Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound
- Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Integral 80Hz HPF switch and 10dB pad
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardiod
- Frequency Response: 20 - 20,000Hz
- Low Frequency Roll-off: 80Hz, 12dB/octave
- Open Circuit Sensitivity: -43dB (7.0mV) re 1V @ 1Pa
- Impedance: 100Ω
- Maximum Input Sound Level: 148dB SPL, 1kHz @ 1% T.H.D.; 158dB SPL, with 10dB pad (nominal)
- Noise: 11dB SPL
- Dynamic Range (Typical): 137dB, 1kHz @ Max SPL
- Signal-to-Noise Ratio: 83dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11-52VDC, 3mA typical
- Switches: High-pass filter, 10dB pad (nominal)
- Weight: 6.0oz. (170g)
- Dimensions (L x max. diameter): 4.55" x 1.89" (115.5 x 48mm)
- Output Connector: Integral 3-pin XLRM-type
- Note: further information can be found within the items located under the "Documentation" tab above.
