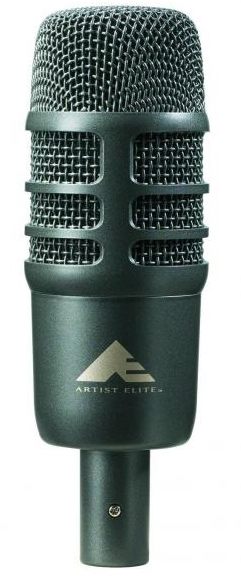

Audio-Technica AE2500 Dual-Element Cardioid Instrument Microphone Image 1
Audio-Technica AE2500 Dual-Element Cardioid Instrument Microphone Image 2
Audio-Technica AE2500 Dual-Element Cardioid Instrument Microphone Image 3
T1pzKJTwcAw?rel=0
3 Videos
Audio-Technica AE2500 Dual-Element Cardioid Instrument Microphone
Our Price: $569.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$16/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Artist Elite AE2500 dual-element instrument microphone from Audio-Technica is the ultimate kick-drum mic, featuring cardioid condenser and dynamic capsules combined within a single housing. The condenser captures the round tonalities of the shell, while the dynamic element delivers the aggressive attack of the beater. It comes with 2 layers of resistive mesh that form multiple densities over the dynamic element’s side-entry ports, thus exercising precise control over the time at which off-axis signals arrive at the diaphragm. Additionally, the condenser diaphragm is optimally-tensioned and aged for long-term stability and consistency.

Includes

  • AE2500 dual-element instrument microphone
  • AT8471 isolation clamp for ⅝"-27 threaded stands
  • ⅝"-27 to ⅜"-16 threaded adapter
  • Soft protective pouch

Features

  • Revolutionary dual-element design represents a ground-breaking transducer achievement
  • Two elements (condenser and dynamic) are enclosed in a single housing
  • Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell
  • Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
  • Robust design for enduring dependability on the road
  • Integral 80Hz HPF switch and 10dB pad on condenser element
  • Includes isolation clamp for shock protection, secure mounting and easy positioning
  • Includes a 16.5' (5m) cable (5-pin XLRF to two standard 3-pin XLR-M connectors) for separate control over each element

Specifications

  • Elements: Condenser, Dynamic
  • Polar Pattern: Cardioid
  • Frequency Response:
    • Condenser: 20Hz - 17,000Hz
    • Dynamic: 30Hz - 10,000Hz
  • Low Frequency Roll-off: 80Hz, 12dB/octave (condenser)
  • Open Circuit Sensitivity:
    • Condenser: -51dB (2.8mV) re 1V @ 1Pa
    • Dynamic: -54dB (1.9mV) re 1V @ 1Pa
  • Impedance:
    • Condenser: 100Ω
    • Dynamic: 600Ω
  • Maximum Input Sound Level:
    • Condenser: 148dB SPL, 1kHz @ 1% T.H.D.
    • Nominal: 158dB SPL, with 10dB pad
  • Dynamic Range (Typical): 124dB, 1kHz @ Max SPL (condenser)
  • Signal-to-Noise Ratio: 70dB, 1kHz @ 1Pa (condenser)
  • Phantom Power Requirements: 11-52VDC, 3mA typical (condenser)
  • Switches: (Condenser only) High-pass filter, 10dB pad (nominal)
  • Weight: 13.8oz. (390g)
  • Dimensions (L x diameter): 6.5" x 2.17" (165 x 55mm) max
  • Output Connector: Integral 5-pin XLRM-type
  • Cable: 16.5' dual-shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors
  • Note: further information can be found within the items located under the "Documentation" tab above.
