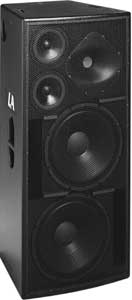

EAW-Eastern Acoustic Wrks LA325-BLACK
3-way Full Range Speaker (2 x 15", 2 x 7", 1 x 2", 90x70 Dispersion, 600W Continuous - Full Range Passive, Black)

OUR PART #:  LA325-BLACK

A 3-way full-range system in a vented trapezoidal enclosure.
Learn More

Call for info!

Similar Products

A 3-way full-range system in a vented trapezoidal enclosure. Includes (2) 15 in woofers, (2) 7 in midrange cones and a 2 in exit/3 in voice coil compression driver on an elliptic (90° x 70°) Wave Guide Plate™ Powering mode is switchable: passive or bi-amplified (passive MF/HF crossover).

The LA325 provides concert-level output in a versatile, portable enclosure. High definition nearfield response in small- to medium-sized venue live music applications. Includes handles and 3-position flytracks with integral mounting/suspension points. Optional casters. Six Year Warranty.

Features:

  • 3-way full range main channel system
  • (2) 15 in LF, vented/(2) 7 in MF, sealed
  • 2 in exit HF on 90° x 70° Elliptic Conical WGP™
  • Integrated flytrack and suspension points
  • Switchable powering: full range passive or bi-amp(passive MF/HF)
  • For portable use or permanent installation
  • EAW processor required to achieve specified bi-amplified performance

Specifications:

  • System Configuration: 3-way, full range
  • LF Subsystem & Loading: 2x 15-in, vented
  • MF Subsystem & Loading: 2x 7-in cones in sealedsub-enclosure
  • HF Subsystem & Loading: 1x 2-in exit compressiondriver on Elliptic Wave Guide Plate™
  • Operating Mode: Passive or Bi-amplified (passive MF/HFcrossover)
  • Controls (switches, knobs): Powering mode switch
  • Enclosure Material: Exterior grade Baltic birchplywood
  • Finish: Wear resistant textured black paint
  • Connector: 2x Neutrik NL4 Speakon
  • Suspension Hardware: 2x 3-position flytracks, 8x3/8”-16 mounting points
  • Grille: Powder coated perforated steel
  • Frequency Response: 50 Hz to 20 kHz (+/-3dB)
  • Recommended High-Pass Frequency: 30 Hz, 24dB/octave
  • Nominal Input Impedance (ohms): 4 full range passive,4 passive (MF/HF), 4 LF
  • Power Handling (watts, continuous): 600 full rangepassive, 600 passive (MF/HF), 1000 LF
  • Nominal Dispersion (degrees @ -6dB, H x V): 90 x 70
  • Dimensions (H x Front W x Rear W x D): 47" x 20.87" x14.36" x 19.5"
  • Trapezoid Angle: 10 degrees
  • Weight; 170 lbs (net), 175 lbs (shipping)
