West Penn 292

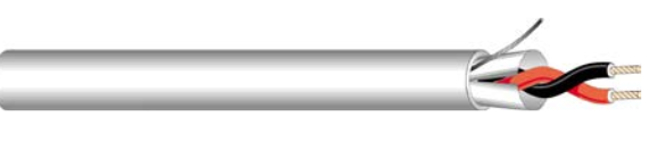

500ft Shielded 2-Conductor 20 Gauge Cable

OUR PART #  292-500-WEST-PENN

Our Price: $53.72
List Price: $89.90
You save 40%! (Low Price Guarantee)
In Stock

The West Penn 292 is a shielded 2-conductor 20 gauge cable

Applications (Indoor)

  • Intercom Systems
  • Security Systems
  • Sound and Audio
  • Background Music
  • Power - Limited Control Circuits

Specifications:

  • Conductor 20 AWG Bare Copper
  • Stranding 7x28
  • Insulation Material PVC
  • Insulation Thickness 0.008'' Nom.
  • Number of Conductors 2
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Jacket Material PVC
  • Jacket Thickness 0.017'' Nom.
  • Overall Cable Diameter 0.140'' Nom.
  • Approximate Cable Weight 15.6 Lbs/1M' Nom.
  • Flame Rating UL 1666 Riser Flame Test

Click to download

West Penn 292
500ft Shielded 2-Conductor 20 Gauge Cable

OUR PART #  292-500-WEST-PENN

Product Information:

The West Penn 292 is a shielded 2-conductor 20 gauge cable

Applications (Indoor)

  • Intercom Systems
  • Security Systems
  • Sound and Audio
  • Background Music
  • Power - Limited Control Circuits

Specifications:

  • Conductor 20 AWG Bare Copper
  • Stranding 7x28
  • Insulation Material PVC
  • Insulation Thickness 0.008'' Nom.
  • Number of Conductors 2
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Jacket Material PVC
  • Jacket Thickness 0.017'' Nom.
  • Overall Cable Diameter 0.140'' Nom.
  • Approximate Cable Weight 15.6 Lbs/1M' Nom.
  • Flame Rating UL 1666 Riser Flame Test

Click to download
