Product Overview

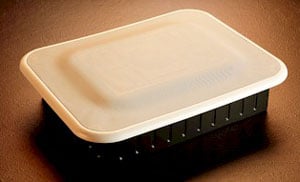

The TOA HB-1 Flush-Mount Subwoofer is the ideal solution for adding low frequency enhancement to commercial, residential and retail sound systems. The HB-1's unique minimum-depth design allows discreet flush-mount installation in ceiling structures or in walls between studs spaced on 16" centers.
The HB-1 features a tuned, ported enclosure and a heavy-duty 8" woofer for high power handling and extended low frequency response. An acoustic bandpass filter design eliminates the need for an external crossover. The solidly constructed steel enclosure also acts as a heat-sink to dissipate excessive heat from the speaker component. Other features include a paintable grille and removable terminal block. Options include a matching transformer for connecting the HB-1 to distributed speaker systems and a 900 Series Low Pass Filter Module for convenient system equalization. The HB-1 also carries a five year warranty.
Includes:
- Front frame x1
- Mounting bracket x1 set,
- Anchor piece x2
- Stud holder x2
- Screw x1 set
Features:
- Low Frequency Enhancement for a wide variety of speaker system applications including hotels, houses of worship, museums, offices, residential spaces, restaurants, and retail stores.
- Minimum-Depth Design allows recessed, flush-mount installation in spaces with only 4.1" of available depth.
- Wall-Mount between 16" spaced wall studs.
- Ceiling-Mount using supplied rigging points.
- Tuned, Ported Enclosure for deep bass and low distortion.
- Acoustic Bandpass Filter Design eliminates need for external crossover.
- High Power Handling: 240W (Continuous Program)
- Frequency Response: 45 - 200Hz (-10dB, 1/2 space)
- High Sensitivity: 91dB SPL (1W / 1m, 1/2 space)
- Heavy-Duty Loudspeaker Component: 8" woofer with ferrite magnet
- Solid, Vibration-Free Steel Enclosure: also acts as heat-sink to dissipate excessive heat away from the speaker component.
- Removable Terminal Block with loop-through terminations for convenient connection of parallel speakers.
- Paintable Grille to custom-match to the environment
- Mounting Bracket Included
Specifications:
- Enclosure: Acoustic Super Woofer
- Power Handling Capacity:
- 240W (Continuous program, 40 - 200Hz)
- 80W (Continuous pink noise, 40 - 200Hz)
- Rated Impedance: 8Ω
- Sound Pressure Level:
- 91dB (1W @ 1m) installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling or wall.)
- 85dB (1W @ 1m) installation in free sound field (Measured in anechoic chamber.)
- Frequency Response: 45 - 200Hz (-10dB) installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling or wall.)
- Speaker Component: 20cm cone speaker
- Input Terminal: Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
- Usable Cable: Solid cable, stranded cable: 0.2 - 2.5m㎡ (AWG No.24 - 14)
- Finish
- Enclosure: Steel plate, black, paint
- Front frame: Fire-resistant ABS resin, off-white, paint
- Punched net: Steel plate, off-white, paint
- Mounting bracket: Steel plate, black, paint
- Dimensions: 430 (W) × 544 (H) × 135mm (D)
- Weight: 11kgs (including front grille and mounting bracket)
