Atlas Sound M1000
712 Cubic Inch, 8" Masking Speaker System

OUR PART #:  M1000

The Atlas Sound M1000 sound masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into the plenum space.
Learn More
Our Price: $53.99
List Price: $66.99
Call for Special Sale Price!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound M1000
Qty:
In Stock
Similar Products

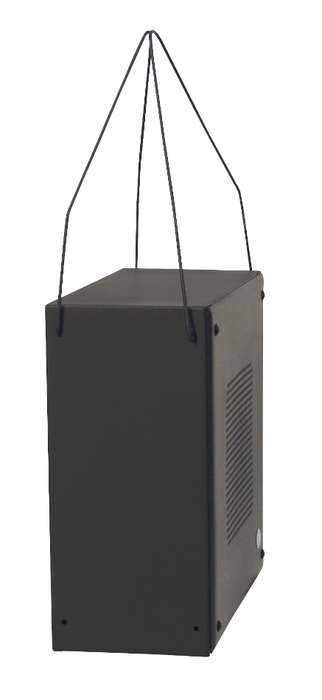

The Atlas Sound M1000 sound masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into the plenum space. The innovative 734 cubic inch square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.

The exclusive Atlas Sound EZ hang brackets simplify installation. This innovative suspension system utilizes (2) collapsible plated hangers configured to allow quick upward, downward, or side firing installation. The hangers are factory-installed on the unit and fold flat for shipping. To meet most any local code requirement, the M1000 includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.

Atlas Sound M1000 Features:

  • Pre-Assembled Unit Includes 8" dia. Loudspeaker, Transformer, Enclosure, Baffle and Mounting Hardware
  • Labor-Saving Hardware Package – Complete with New Snap Hanger Assembly, Allows Quick and Easy Installation
  • Innovative Input Panel Includes Combination Knock-Out and Strain Relief Connector to Accommodate Flexible or Rigid Conduit
  • Design Enables Upward, Downward, or Horizontal Orientation
  • 734 cubic inch Enclosure for Extended Low Frequency Response
  • Available in Black or White Epoxy Finishes to Blend with a Variety of Open Ceiling Plans
  • Suitable for Use Above Suspended Ceiling Systems or Open Ceiling Spaces Approved for Use in Air Handling (Plenum Ceilings)
  • Safety Listed to UL 1480 & UL 2043

Atlas Sound M1000 Specifications:

  • Loudspeaker:  8" Dual Cone
  • Frequency Response:  100 Hz - 10 kHz, +/- 1.5dB
  • Sensitivity:  97dB Peak, 94dB Average
  • 70.7V Power Taps:  .25, .5, 1, 2 and 4
  • Height:  5-1/2" (13.97 cm)
  • Width:  11-9/16" (29.37002 cm)
  • Depth:  11-9/16" (29.37002 cm)
  • Weight:  10.00 lbs (4.54 kgs)
  • ETL Certified to Safety Listed UL1480, UL2043
