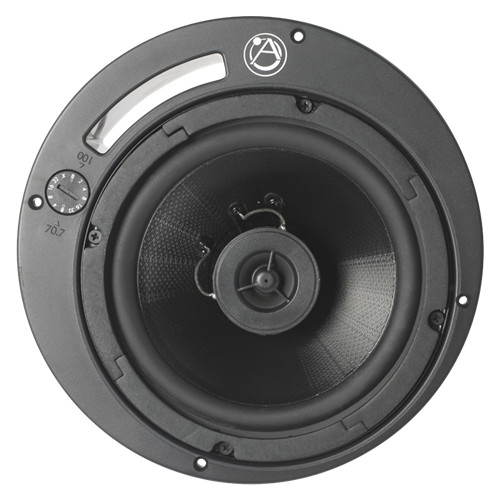

Atlas IED FA62T-8MB 6" 30w 70v Speaker System

The Atlas Sound FA62T-8MB is comprised of 6" speaker with a transformer, selector switch, and front plate. The footprint of the FA62T-8MB is identical to a standard FA Series 8" speaker component, which allows a motorboard to fit into all current Strategy Series® 8" enclosures in the exact manor as a regular FA speaker. Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 Ohm/direct coupled operation.

Atlas Sound FA62T-8MB Features:

• 6" Speaker installs into 8" Strategy enclosure
• Designed for division of labor installations when enclosures need to be installed before speakers
• Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
• Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
• Tuned port maximizes low frequency response from FA97-8 & FA95-8 enclosure
• UL1480 for General Signaling Listed file UEAY.S1824

Atlas Sound FA62T-8MB Specifications

• Power Rating: 50 Watts (Transformer Limited)
• 70.7V Taps: 2, 4, 8, 16, 32
• Frequency Response (+/-7dB): 63Hz - 20kHz
• Sensitivity (1W/1M): 88dB Average
• Woofer: 6" Poly Cone Butyl Rubber Surround
• Woofer Magnet WT: 14 oz
• HF Driver: Coaxially Mounted PEI Dome Tweeter
• Matches Enclosure: FA95-8, FA97-8
• Weight-Less Tile Bridge: 4 lbs
