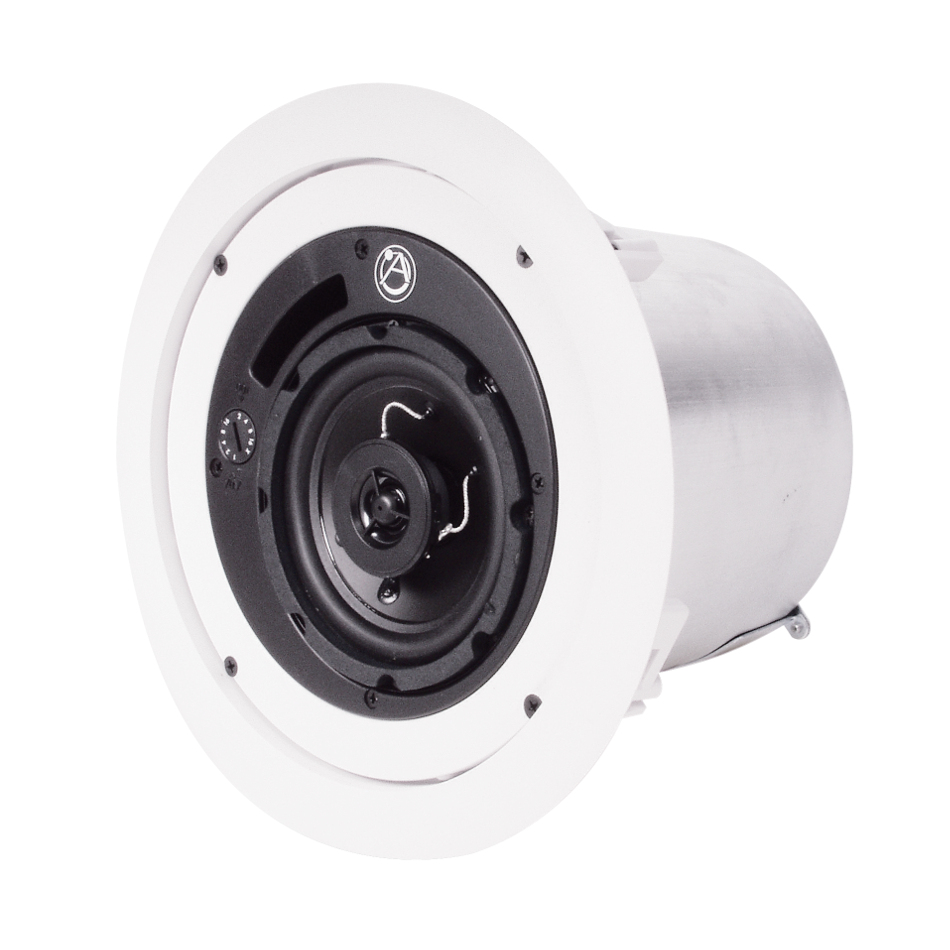

Atlas Sound FAP42T
4" Coaxial Speaker System with 70/100V 16W Transformer, Priced Individually, Sold in Pairs

OUR PART #:  FAP42T

The Atlas Sound FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation.
Learn More
Our Price: $94.99
List Price: $116.99
You save 19%!
Write the first review.

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound FAP42T
Qty:
In Stock
Similar Products

The Atlas Sound FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings.

The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

Atlas Sound FAP42T Features:

  • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing Increased Output for Higher SPL Applications
  • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Perfect Companion with the FAPSUB Subwoofer SystemWhen Sub Bass is Required
  • Press-Fit Grille Blends Perfectly into Contemporary Architecture

Atlas Sound FAP42T Specifications:

  • Speaker Type: Coaxial
  • Power Taps: 1, 2, 4, 8, 16 Watts & 8 Ohms
  • Frequency Response: 75 Hz - 20 kHz
  • Dispersion: 130┬░
  • Sensitivity: 88dB Average
  • Depth: 8-7/8" (22.5425 cm)
  • Diameter: 10-1/2" (26.67 cm)
  • Shipping Weight: 12.00 lbs (5.44 kgs)
  • Certified to Safety Listing: UL 1480
Ceiling Speaker Trim Ring, for FAP42T, New Construction Drywall
Atlas Sound FAP42TR Ceiling Speaker Trim Ring, for FAP42T, New Construction Drywall
Use model FAP42-TR for new construction drywall ceiling applications. This unit provides a marked location for drywall installers to cut around, essentially reserving the desired location in the ceiling until final installation of ...
23.99 29.99 20

Usually ships in 7-14 business days.
Need it sooner? Call us!
Sold in multiples of 2
Retro Ring for FAP42T/FAP42T-B/FAP42TC
Atlas Sound FAP42-RR Retro Ring for FAP42T/FAP42T-B/FAP42TC
Atlas' FAP42-RR retro ring kit allows Atlas FAP42T, FAP42T-B, and FAP42TC ceiling speakers to be installed into a typical 8" loudspeaker cutout up to 12".
16.99 20.99 19

Usually ships in 7-14 business days.
Need it sooner? Call us!
