OUR PART #: GD87 MFR #: GD87
Use Atlas Sound 8" (203mm) diameter, multi-purpose, coaxial loudspeaker model GD87 for voice transmission ... Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service

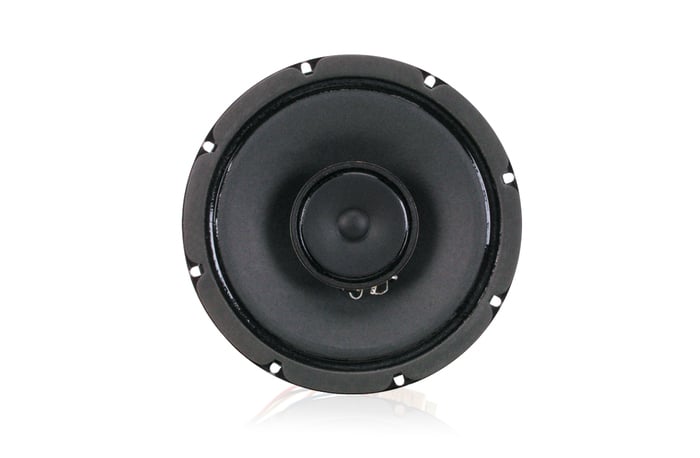

Use Atlas Sound 8" (203mm) diameter, multi-purpose, coaxial loudspeaker model GD87 for voice transmission, music and signal eproduction in high-quality commercial, industrial and institutional applications.
The speaker used in the GD87 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C803A Series in the past will know exactly what to expect when they use the GD87.
The high-quality, 25 watt Model GD87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 45Hz-19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 90° @ 2kHz. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1M). The loudspeaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz to 15kHz. The primary taps are 1, 2, 4, and 8 watts.
