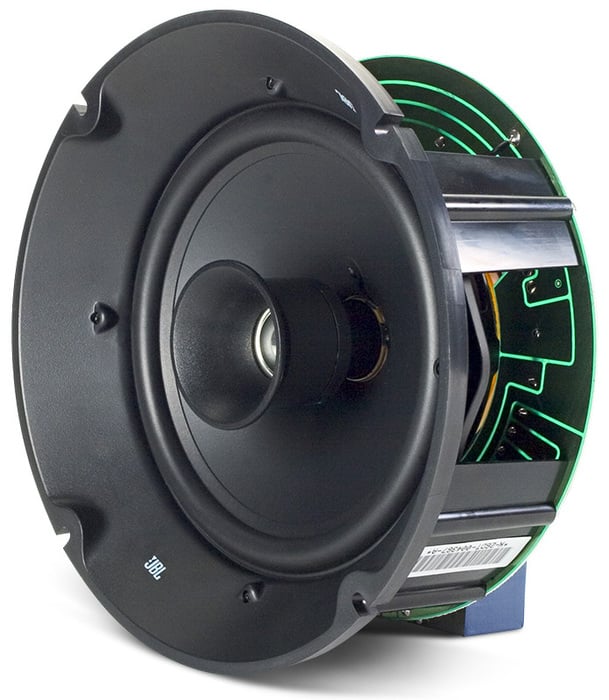

JBL CONTROL 26-DT 6.5" Coaxial Ceiling Speaker, 70V, No Backcan

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8 in) drivers. High power handling, wide frequency response and low distortion make the Control 26-DT ideal for sound systems requiring a higher fidelity sound. The Control 26-DT includes a lowsaturations high fidelity, low insertionloss transformer for use with 70.7 V and 100 V distributed line systems. The transformer has a top tap rating of 60 W.

The Control 26-DT matches industry standard mechanical specifications for 8-inch speakers. The four mounting points, at a diameter of 194 mm (7.625 in), allow mounting either to a grille or a backcan, depending on the equipment used. The woofer features a polypropylene-coated cone and pure butyl-rubber surround for long life, even in high humidity environments. The coaxially mounted titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides even coverage of the listening area. The 90° coverage pattern provides excellent projection for use in mediumhigh ceilings.

Features

• Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
• Comes complete with transducer, network and transformer.
• Advanced crossover network provides natural sound and even coverage throughout listening area.
• 60 W transformer for 70 V or 100 V distributed speaker lines.
• Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Specifications

• Frequency Range: 80 Hz - 20 kHz
• Power Capacity: 150 W Continuous Program Power; 75 WContinuous Pink Noise
• Transformer Taps:
  • 70V: 60W, 30W, 15W & 7.5W
  • 100V: 60W, 30W, & 15W
• Nominal Coverage Angle: 110° conical coverage
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
• Rated Maximum SPL: 107 dB @ 1 m (3.3 ft)
• Low-Frequency: 165 mm (6.5") Polypropylene-coated, 1"coil on aluminum former
• High-Frequency :19 mm (3/4") Titanium coated polyester
• Termination: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max.wire 12 AWG (2.5 mm2)
• Dimensions: 8.3" H x 9.9" Dia. (210 x 252 mm), 7.5"(190 mm) front of ceiling tile to back of backcan
• Net Weight (each): 10 lbs (4.2 kg)
• Shipping Weight (pair): 21 lbs (9.7 kg)
