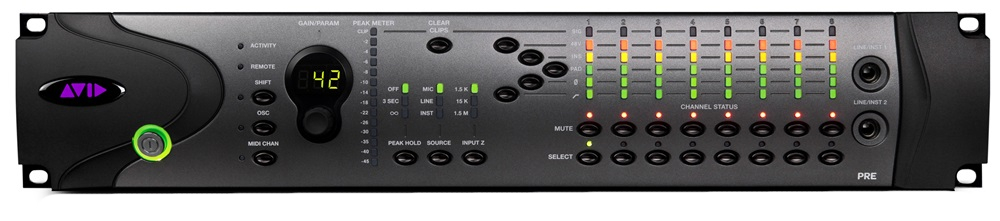

Avid PRE
Remote Control Microphone Preamp

OUR PART #:  PRE-DIGIDESIGN

Avid's PRE captures performances with great sound transparency from anywhere in your studio.
Learn More
Similar Products

Avid's PRE captures performances with great sound transparency from anywhere in your studio. The high-performance, 8-channel microphone preamp designed for and integrated into Pro Tools HDX systems. With it, you can remotely control and record sessions easily from the control room and easily recall those setting later. Connect eight mics, instruments, or line inputs. Achieve incredible sonic clarity. Use it with Pro Tools HDX or standalone.

Avid PRE Features:

  • Take Remote Control: Stash PRE closer to your audiosources in your live room instead of the control room then interact with theinterface remotely, directly from Pro Tools or an Avid control surface.
  • Hear What You've Been Missing: Experience better audiofidelity and wider dynamic range with PRE's hybrid microphonepre-amplification circuitry.
  • Seamless Integration: PRE integrates into any ProTools HDX or HD Native workflow.
  • Standalone Flexibility: Use PRE as a standalone mic preamp by accessing the features of various switches and controls on the front of the interface or remotely.

Avid PRE Specifications:

  • Input Stage
    • Circuit Topology: Discrete Matched Transistor Hybrid
    •   Input Gain: 0 dB to +69 dB in ~3 dB steps, with -18 dB pad engaged; -18 dB to +51 dB
    •   Maximum Input Level: +47 dBu, pad in, @ 1 kHz, < 0.1% THD
    •   Mic E.I.N (unweighted): -128 dB @ 66 dB gain (20 Hz to 20 kHz) 150 ohm
    •   THD+N: < 0.0005% @ 1 kHz, 0 dB gain @ 20 dB signal; < 0.001% (20 Hz to 20 kHz), 0 dB gain @ 0 dB signal
    •   CMMRR: < -75 dB @ 1 kHz, 140 mVcm, +6 dB gain
    •   Crosstalk: < -90 dB (20 Hz - 20 kHz)
    •   Frequency Response: ┬▒0.1 dB; 20 Hz to 20 kHz, @ +48 dB gain
    •   Input Impedance (Input Z): 1.5 kohm (low); 15 kohm (mid); 1.5 Mohm (high)
    •   Phantom Power: 48V +/- 1V
    •   High Pass Filter: -3 dB @ 85 Hz, 18 dB/octave
    •   Maximum Output Level: +29 dBu, balanced, @ 1 kHz, < 0.1% THD
  • Output Stage
    • 110/220 Volt 60/50 Hz (auto-sensing)
    • AC Line Current = 6A
    • 400 Watt Maximum
  • Dimensions: 19" W x 3.5" H x 15.63" D (48.26 x 8.89 x 39.69 cm)
  • Weight: 14.53 lbs (6.59 kg)
