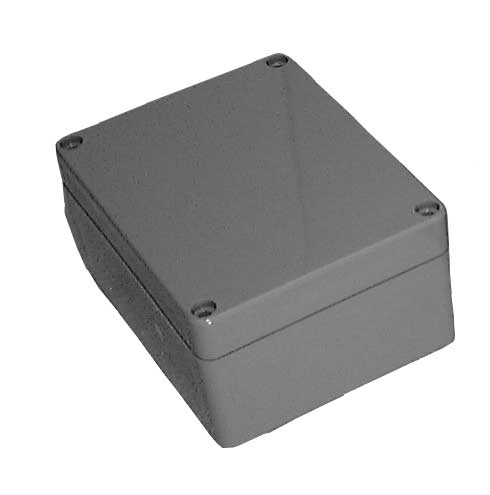

Philmore PB413
Sealed ABS Enclosure: 6.75" L x 4.75" W x 2.165" H

OUR PART #  PB413

Our Price: $16.11
List Price: $19.71
You save 18%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

This versatile case has many uses in the electrical and electronic industries.  It can easily be drilled or punched, making it ideal as a circuit enclosure or a junction box.

Features:

  • High impact ABS material molded in dark grey color.
  • Lids & bases have tongue and groove sealing system with a neoprene gasket.
  • Wall mounting holes and lid fixing screws are outside sealing area thus preventing the ingress of dust and moisture.
  • Designed to meet IP65 of IEC529 and NEMA 4 specifications for dust & moisture.
  • Internal guide slots for mounting PC boards vertically
  • Bosses on internal base allows fixing of PC boards horizontally or for connection of terminals, etc. into threaded brass inserts.
  • Lid fixing screws are M4 stainless steel (non-magnetic) into threaded brass inserts.
  • Operating temperatures: -20°C - +80°C

Dimensions: 6.75" L x 4.75" W x 2.165" H

Philmore PB413
Sealed ABS Enclosure: 6.75" L x 4.75" W x 2.165" H

OUR PART #  PB413

Product Information:

This versatile case has many uses in the electrical and electronic industries.  It can easily be drilled or punched, making it ideal as a circuit enclosure or a junction box.

Features:

  • High impact ABS material molded in dark grey color.
  • Lids & bases have tongue and groove sealing system with a neoprene gasket.
  • Wall mounting holes and lid fixing screws are outside sealing area thus preventing the ingress of dust and moisture.
  • Designed to meet IP65 of IEC529 and NEMA 4 specifications for dust & moisture.
  • Internal guide slots for mounting PC boards vertically
  • Bosses on internal base allows fixing of PC boards horizontally or for connection of terminals, etc. into threaded brass inserts.
  • Lid fixing screws are M4 stainless steel (non-magnetic) into threaded brass inserts.
  • Operating temperatures: -20°C - +80°C

Dimensions: 6.75" L x 4.75" W x 2.165" H
