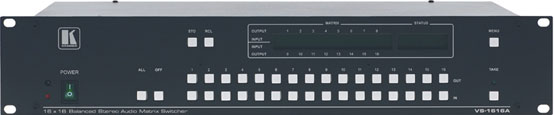

Kramer VS-1616A
16x16 Balanced Stereo Audio Matrix Switcher

OUR PART #:  VS1616A

The VS-1616A is a high performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously.
Learn More
Our Price: $2,156.00
List Price: $2,695.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer VS-1616A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-1616A is a high performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously.

S/N Ratio - 82.2dB unweighted (1Vpp).  Control - Front panel, RS-232 (K-Router™ Windows® - based software is included),   RS- 485, contact closure,   IR remote (included).  Take Button - Execute multiple switches all at once.  Memory Locations - Store multiple switches as presets to be recalled and executed when needed.  Expandable to 96x96 using multiple units.  Standard 19” Rack Mount Size - 2U.

INPUTS:   16 balanced audio stereo, + 4dBm/10k ohm; on detachable terminal blocks.   OUTPUTS:   16 balanced audio stereo, + 4dBm/50 ohm; on detachable terminal blocks.   MAX. OUTPUT LEVEL:   20 Vpp.   BANDWIDTH (-3dB):   100 kHz.   S/N RATIO:   82.2 dB unweighted.   CROSSTALK:   -80 dB @ 1 kHz.   CONTROL:   Manual via front panel touch switches, RS-232 and RS- 485.   COUPLING:   AC.   AUDIO THD + NOISE:   0.04%.   AUDIO 2nd HARMONIC:   0.002% @ 1kHz.   POWER SOURCE:   115/230 VAC, 50/60 Hz, 23VA.   DIMENSIONS:   19-inch (W), 7-inch (D) 2U (H) rack mountable.   WEIGHT:   3.5 kg. (7.8 lbs.) approx.   ACCESSORIES:   Power cord, Windows®-based control software, Null modem adapter
