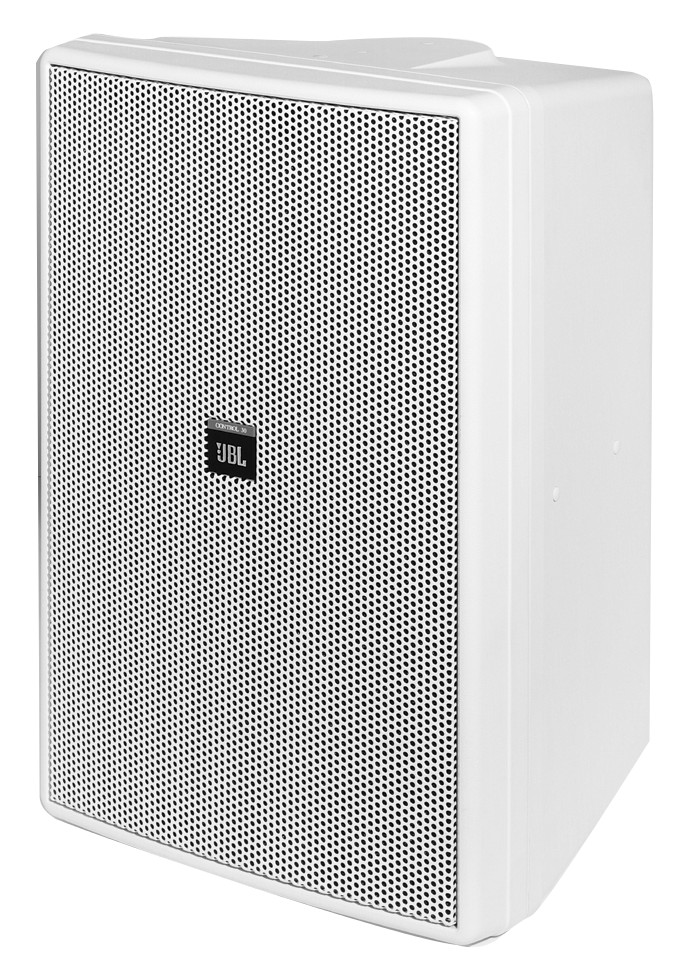

JBL Control 30
10" 3 Way Loudspeaker in White

OUR PART #:  CONTROL-30-WHITE

The JBL Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques...
Learn More
Our Price: $686.00
List Price: $857.85
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 30
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

A symmetrical mid-high frequency horn allows use of the speaker in either vertical or horizontal orientation. Smooth frequency response and cone-midrange performance ensures excellent sound character throughout the frequency band, over the entire listening area.

The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 4 ohm impedance allows use of multiple speakers on a loudspeaker line.

The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-30UB (-WH) U-bracket allows for compact installation and is particularly useful for low profile underbalcony applications.

Weather resistance has been maximized. The neodymium magnet LF woofer has a fiberglass and Kevlar composite cone, the surround is pure butyl rubber, and the basket is rear loaded to minimize exposure. The MR cone of the coaxial mid-high driver is anodized aluminum with a formulation EPDM rubber surround, and the HF compression driver’s diaphragm is pure titanium. The coaxial component is protected by an acoustically transparent screen. The grille is thermoset composite coated and stands up very well to UV as well as humidity. The grille is backed with our WeatherMax multi-layer foam, which prevents the direct incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals.

JBL's exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound.

JBL Control 30 Features:

  • Extended bandwidth, extremely smooth frequency response.
  • Fully outdoor-capable design, featuring WeatherMax™.
  • 120° x 110° HF coverage.
  • 150 W transformer for 70 V or 100 V lines, with 8 thru.
  • SonicGuard® overload protection.
  • 250 mm (10") fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5") anodized aluminum cone MR, and 25 mm (1") titanium diaphragm compression driver.
  • Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
  • Sealed input panel cover and screw-down input terminals.

JBL Control 30 Specifications:

  • 38 Hz to 17 kHz frequency range (-10 dB)
  • 250W pink noise, 500 watts continuous program power capacity
  • 120 x 110 degree coverage horn
  • 150W, 75W, 38W at 70V/100V (plus 19W tap at 70V only )
  • 8 Ohm Bypass
  • Outdoor-rated screw down input terminal strip (MTC-PC2 sealed entrance cover)
  • Dimensions: 23.3" H x 14.6" W x 13.5" D (593 x 372 x 345 mm)
  • Net Weight: 42 lbs (18.9 kg)
