JK Audio VOICE Telephone Handset Audio Tap

OUR PART #: VOICE MFR #: VOICE

Copied to clipboard

Voice Path continuously routes both sides of your conversation to the mic input of your PC (or Mac) sound card. ...Read more

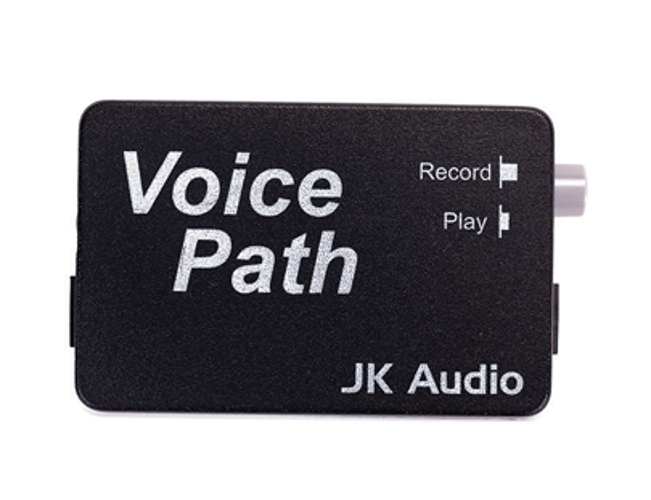

JK Audio VOICE Telephone Handset Audio Tap Image 1
JK Audio VOICE Telephone Handset Audio Tap
Our Price: $106.70
List Price: $110.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Voice Path continuously routes both sides of your conversation to the mic input of your PC (or Mac) sound card. Simply press in the gray button when you are ready to play audio recordings back into the phone line. With the button in, Voice Path will disconnect the microphone from your handset and send audio down the phone line and into your receiver. You will hear the transmit audio as well as the voice from the other end of the call. The Voice Path opens endless applications such as news rooms, weather and traffic reports, ad creation and proofing, transcribing, voice mail prompts, production room. Simply connect between the handset and base of your telephone. The attached cables connect directly to the in and out jacks of your sound card. Use your PC software to record, edit, and then play your conversation right back into the phone line. When sending audio into a telephone, Voice Path must emulate the microphone that is in the handset. A switch on the back of Voice Path allows you select between the three basic types of handset microphone: electret, dynamic, and carbon. Signal level to the PC sound card is also adjustable. Voice Path will not work with telephones that have a keypad in the handset.

Features

  • Tap your phone with 3.5mm connections
  • 1/8" (3.5mm) input/output
  • Passive design
  • Routes both sides of conversation to the mic input of your sound card
  • Simply connect between the handset and base of your phone

Specifications

  • Handset: 4 pin/4 position handset jack
  • Phone Base: 4 pin/4 position jack
  • Handset Cable: 18" flat cable (provided)
  • Audio input: 3.5 mm stereo plug, 48" long, left channel only, 10 kohm impedance, 250 mV nominal
  • Audio output: 3.5 mm mono plug, 48" long cable, 2800 ohm impedance, 100 mV max
  • Size: 3" x 1" x 2" (7.6 x 2.5 x 5.1 cm)
  • Weight: 9 ounces
