Kramer VM2N
1x2 Composite/SDI distribution Amp with audio

OUR PART #:  VM2N

The Kramer VM-2N is a high performance distribution amplifier for composite or SDI video and unbalanced stereo audio signals.
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM2N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

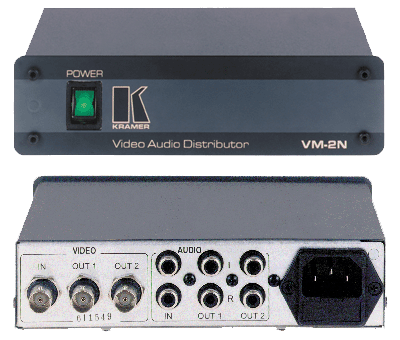

The Kramer VM-2N is a high performance distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It will take one input, provide correct buffering and isolation and distribute the signal to two identical outputs.

High Bandwidth - 400MHz (- 3dB).  Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-50RN adapter.

  • INPUT:   1 video DC coupled, 1Vpp/75ohm; on a BNC connectors.1 audio stereo/balanced mono, +4dBm/50kohm; on RCA connectors.
  • OUTPUTS:   2 video, 1 Vpp/75ohm; on BNC connectors.2 audio stereo/balanced mono, +4dBm/50ohm; on RCA connectors.
  • MAX. AUDIO LEVEL:   24dBm.
  • VIDEO BANDWIDTH (-3dB):   400MHz.
  • AUDIO BANDWIDTH (-3dB):   100 kHz.   DIFF. GAIN:   0.05 %.   DIFF. PHASE:   0.1 Deg.
  • K-FACTOR:   <0.05%.
  • VIDEO S/N RATIO:   75dB.
  • AUDIO S/N:   Better than 85dB.
  • SDI EFF. RANGE:   Up to 50 meters.
  • COUPLING:   DC (video); AC (audio.).
  • AUDIO THD+N:   0.017%.
  • POWER SOURCE:   230VAC 50/60 Hz (115V U.S.A.), 4.6 VA.
  • DIMENSIONS:   16.5cm x 12cm x 4.5cm (6.5” x 4.7” x 1.8”, W, D, H.).
  • WEIGHT:   0.62 kg. (1.3 lbs.) approx.   A
  • CCESSORIES:   Power cord.
  • OPTIONS:   RK-50RN 19 inch rack adapter.
