Belden 1694A-BY-THE-FOOT Coax, Precision Video Cable for Analog and Digital, Black, Sold by the Foot

OUR PART #: 1694A-BY-THE-FOOT

Copied to clipboard

18 AWG .040" solid bare copper conductor, gas-injected foam HDPE insulation, Duofoil and a 95% tinned copper braid shield, PVC jacket. ...Read more

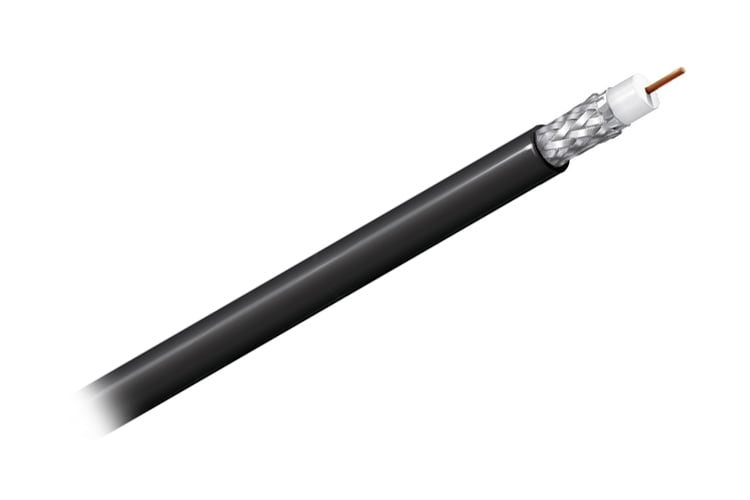

Belden 1694A-BY-THE-FOOT Coax, Precision Video Cable For Analog And Digital, Black, Sold By The Foot Image 1
Belden 1694A-BY-THE-FOOT Coax, Precision Video Cable For Analog And Digital, Black, Sold By The Foot
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

18 AWG .040" solid bare copper conductor, gas-injected foam HDPE insulation, Duofoil and a 95% tinned copper braid shield, PVC jacket.

Specifications:

  • Conductor
    • Number of Coax: 1
    • Total Number of Conductors: 1
    • RG Type: 6/U
    • AWG: 18
    • Stranding: Solid
    • Conductor Diameter: .040"
    • Conductor Material: BC - Bare Copper
  • Insulation
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Insulation Diameter: .180"
  • Outer Shield
    • Outer Shield Material Trade Name: Duofoil
    • Outer Shield Type: Tape/Braid
  • Outer Jacket Material: PVC - Polyvinyl Chloride
