Rode NT5-MP Cardioid Condenser Microphones, Matched Pair

OUR PART #: NT5-MP MFR #: NT5

Copied to clipboard

The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'. ...Read more

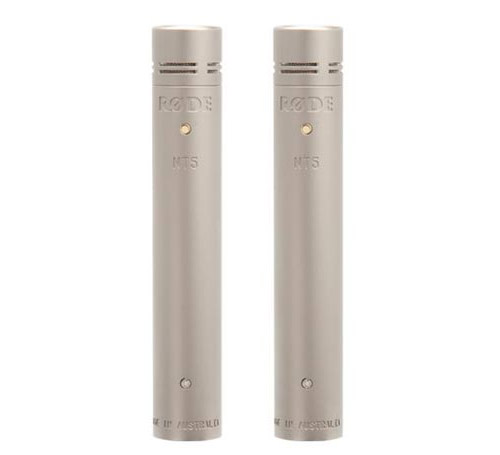

Rode NT5-MP Cardioid Condenser Microphones, Matched Pair Image 1
Rode NT5-MP Cardioid Condenser Microphones, Matched Pair Image 2
Rode NT5-MP Cardioid Condenser Microphones, Matched Pair
Our Price: $429.00
List Price: $699.00
You save 39%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$12/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'. Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer. Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom. Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available. Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair. The NT5 is designed and made in Australia, and covered by RØDE's industry leading 10-year warranty.

Includes

  • 2 x NT5 microphones
  • 2 x RM5 (stand mount)
  • 2 x WS5 (windshield)
  • RC5 (case)

Features

  • Externally biased condenser
  • Gold-sputtered 1/2" capsule
  • Heavy-duty satin-nickel plated body
  • Dual power operation and surface-mount circuitry
  • Low noise

Specifications

  • Manufacturer #: NT5-MP
  • Acoustic Principle: Pressure Gradient
  • Capsule Size: 0.5" (13mm)
  • Active Electronics: JFET Impedance converter with bipolar output buffer
  • Address Type: End
  • Polar Pattern: Cardioid, picks up audio from the front and sides, and rejects audio from rear
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: -38 dB re 1v/Pa ± 2 dB equivalent to 12mV/Pa where 1 Pa =94dB SPL
  • Equivalent Noise:
  • Maximum Output: +13.9 mV (@ 1% THD into 1 kOhm load)
  • Dynamic Range: >128 dB
  • Maximum SPL: 143 dB
  • Signal to Noise Ratio: 78 dB
  • Output Connector: XLR
  • Power Requirements:
    • 4 mA, P48 Supply (38V–52V)
    • 2 mA, P24 Supply (20V-26V)
  • Dimensions (H x W x D, per single mic): 118.00 x 20.00 x 20.00mm
  • Packed Weight: 1.8kg (Mic only - 100g)

Note

NOTE: The microphone operates in accordance with the above specifications to a minimum of 18V. It will operate with some performance degradation below 18V.
