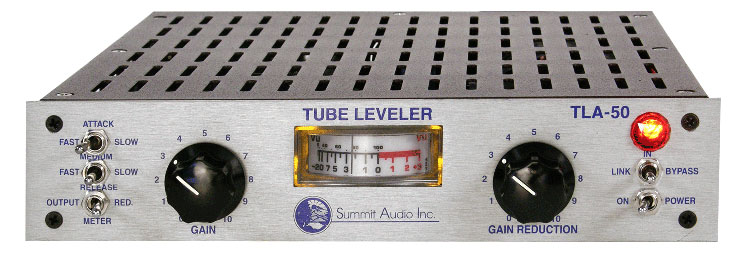

Summit Audio TLA50
Tube Compressor

OUR PART #  TLA50

Our Price: $799.99
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Add the warm sound of classic Summit Audio compression to your music with the TLA-50 Tube Leveling Amplifier. This single channel tube leveling amp will warm your signals like nothing else. With +4dB and -10dB inputs and outputs, the TLA-50 will interface into any studio with ease. Also features side chain access, stereo linking with another TLA-50, switchable attack and release times, fully adjustable gain and gain reduction control and accurate VU metering with OL indication. All the warmth of that classic Summit Audio tube sound at an unreal price.

Features:

  • Automatic level matching for interfacing -10dB and +4dB devices
  • 3 position attack and release settings
  • Continuously variable gain and gain reduction controls
  • VU metering of input level or gain reduction
  • Overload indication
  • Side chain access on 1/4" TRS jack
  • Stereo linkable with another TLA-50
  • Internal high voltage power supply
  • One 12AX7A/ECC83 vacuum tube

Specifications:

  • Max input level: +20 dBu
  • Max output level (XLR): +25dBu
  • Max gain: 24dBu
  • Frequency response: 20Hz-20kHz +/-1dB w/6dB compression
  • Signal to noise ratio: 120dB
  • THD + Noise: 0.05% +4dB, 3dB compression
  • Attack times: 5ms-200ms
  • Release times: 50ms-1000ms
  • Vacuum tubes: single 12AX7A
  • Dimensions: 8.5x8.5x1.75
  • Weight: 5 lbs.
Rackmount KitSummit Audio SRK100 Rackmount Kit

Rack mount one or two of the ½-rack Summit Audio products with the SRK-100. The SRK-100 replaces the top panels of one or two TD-100's, 2BA-221's, TLA-50's, or FeQ-50's for sag-free, solid support to mount in a standard 19-inch rack.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$70.99

Click to download

Summit Audio TLA50
Tube Compressor

OUR PART #  TLA50

Product Information:

Add the warm sound of classic Summit Audio compression to your music with the TLA-50 Tube Leveling Amplifier. This single channel tube leveling amp will warm your signals like nothing else. With +4dB and -10dB inputs and outputs, the TLA-50 will interface into any studio with ease. Also features side chain access, stereo linking with another TLA-50, switchable attack and release times, fully adjustable gain and gain reduction control and accurate VU metering with OL indication. All the warmth of that classic Summit Audio tube sound at an unreal price.

Features:

  • Automatic level matching for interfacing -10dB and +4dB devices
  • 3 position attack and release settings
  • Continuously variable gain and gain reduction controls
  • VU metering of input level or gain reduction
  • Overload indication
  • Side chain access on 1/4" TRS jack
  • Stereo linkable with another TLA-50
  • Internal high voltage power supply
  • One 12AX7A/ECC83 vacuum tube

Specifications:

  • Max input level: +20 dBu
  • Max output level (XLR): +25dBu
  • Max gain: 24dBu
  • Frequency response: 20Hz-20kHz +/-1dB w/6dB compression
  • Signal to noise ratio: 120dB
  • THD + Noise: 0.05% +4dB, 3dB compression
  • Attack times: 5ms-200ms
  • Release times: 50ms-1000ms
  • Vacuum tubes: single 12AX7A
  • Dimensions: 8.5x8.5x1.75
  • Weight: 5 lbs.
Rackmount KitSummit Audio SRK100 Rackmount Kit

Rack mount one or two of the ½-rack Summit Audio products with the SRK-100. The SRK-100 replaces the top panels of one or two TD-100's, 2BA-221's, TLA-50's, or FeQ-50's for sag-free, solid support to mount in a standard 19-inch rack.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$70.99
