Product Overview

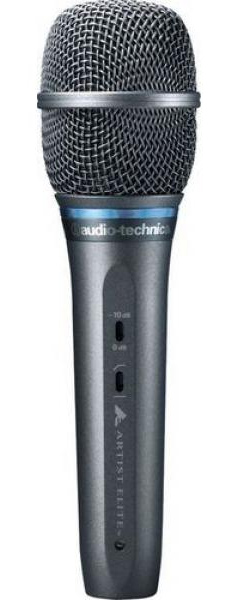

Setting the new standard in audio capture, the Audio-Technica AE3300 gives voice to the subtleties of vocal performance, thanks to its pristine audio quality, ultra-low handling noise, and high-frequency clarity. It's a cardioid condenser vocal mic that features the same condenser element used in the legendary AT4033, time-tested and proven in the world’s finest recording studios. It includes a hardened-steel outer grille that's lined with fine steel mesh plus a layer of open-cell foam to offer ultimate protection against vocal plosives without compromising its high-frequency clarity. Additionally, it features superior anti-shock engineering which ensures low handling noise and quiet performance. Exceptional performance — exacting detail — brilliant clarity: the AE3300.
Includes
- AE3300 Microphone
- AT8470 Quiet-Flex stand clamp for ⅝"-27 threaded stands
- ⅝"-27 to ⅜"-16 threaded adapter
- Soft protective pouch
Features
- Exceptional performance for exceptional performers
- Same element as the classic AT4033 studio microphone
- Well-tempered polar pattern with outstanding rejection qualities
- Superior anti-shock engineering ensures low handling noise and quiet performance
- High-quality double-sided PCB uses surface-mount components. Extensive grounding plane and attention to best-practice grounding methods minimize electrical noise
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
- Robust all-metal design for enduring dependability on the road
- Quiet-Flex™ stand clamp provides silent, flexible microphone positioning
- Integral 80Hz HPF switch and 10dB pad
Specifications
- Element: Fixed-charge back plate, permanently-polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 30Hz - 18kHz
- Low Frequency Roll-off: 80Hz, 12dB/octave
- Open Circuit Sensitivity: -42dB (7.9mV) re 1V @ 1Pa
- Impedance: 150Ω
- Maximum Input Sound Level: 147dB SPL, 1kHz @ 1% T.H.D.; 157dB SPL, with 10dB pad (nominal)
- Noise: 19dB SPL
- Dynamic Range (Typical): 128dB, 1kHz @ Max SPL
- Signal-to-Noise Ratio: 75dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11-52VDC, 3mA typical
- Switches: High-pass filter, 10dB pad (nominal)
- Weight: 10.6oz. (300g)
- Dimensions:
- Length: 7.05" (179mm)
- Head diameter: 1.97" (50mm)
- Body tapered diameter: 1.30" to 0.87" (33mm to 22mm)
- Output Connector: Integral 3-pin XLRM-type
- Note: further information can be found within the items located under the "Documentation" tab above.
