Product Overview

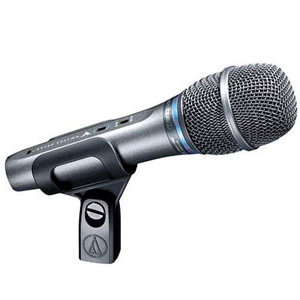

The ultimate vocal performance instrument, the Artist Elite AE5400 cardioid condenser delivers pristine sound quality demanded by the most discriminating microphone user. With its superb sonic design, this true condenser mic features superior anti-shock engineering for low handling noise and quiet performance. Including the same element as the classic AT4050 studio mic, its large-diaphragm capsule assures an accurate, natural response. It handles high SPL's and offers protection against both plosives and sibilance without compromising high-frequency performance and clarity.
Includes
- AE5400 microphone
- AT8470 Quiet-Flex™ stand clamp for ⅝"-27 threaded stands
- ⅝"-27 to ⅜"-16 threaded adapter
- Soft protective pouch
Features
- The ultimate vocal performance instrument
- Pristine sound quality demanded by the most discriminating microphone user
- Same large-diaphragm element as the renowned AT4050 studio microphone; true condenser design
- Superior anti-shock engineering ensures low handling noise and quiet performance
- High-quality double-sided PCB uses surface-mount components. Extensive grounding plane and attention to best-practice grounding methods minimize electrical noise
- Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Custom transformer improves performance specifications by isolating against noise and RF interference, and providing excellent saturation characteristics that contribute to smooth linear sound quality
- Robust design for enduring dependability on the road
- Quiet-Flex stand clamp provides silent, flexible microphone positioning
- Integral 80Hz HPF switch and 10dB pad
Specifications
- Element: Externally polarized (DC Bias) condenser
- Polar Pattern: Cardioid
- Frequency Response: 20 - 20,000Hz
- Low Frequency Roll-off: 80Hz, 12dB/octave
- Open Circuit Sensitivity: -40dB (10.0mV) re 1V @ 1Pa
- Impedance: 150Ω
- Maximum Input Sound Level: 147dB SPL, 1kHz @ 1% T.H.D.; 157dB SPL with 10dB pad (nominal)
- Noise: 14dB SPL
- Dynamic Range (Typical): 133dB, 1kHz @ Max SPL
- Signal-to-Noise Ratio: 80dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11-52VDC, 4mA typical
- Switches: High-pass filter; 10dB pad (nominal)
- Weight: 11.6oz. (330g)
- Dimensions:
- Length: 7.05" (179mm)
- Head diameter: 1.97" (50mm)
- Tapered body diameter: 1.30" to 0.87" (33mm to 22mm)
- Output Connector: Integral 3-pin XLRM-type
- Note: further information can be found within the items located under the "Documentation" tab above.
