TOA CS-64 6W Paging Speaker

OUR PART #: CS64 MFR #: CS-64

Copied to clipboard

TOA CS Series Wide-Range Paging Speakers are ideal for indoor and outdoor commercial sound system applications for voice paging... ...Read more

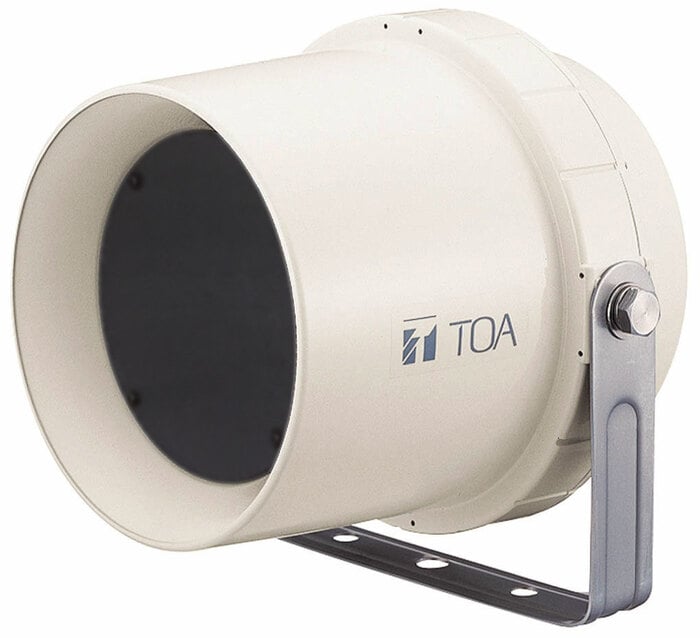

TOA CS-64 6W Paging Speaker Image 1
TOA CS-64 6W Paging Speaker
Our Price: $75.70
List Price: $93.70
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

TOA CS Series Wide-Range Paging Speakers are ideal for indoor and outdoor commercial sound system applications for voice paging, background music and tone signaling distribution. Compared to traditional metal paging horns, CS Series speakers offer wider frequency range and superior sound quality. CS Series models include the CS-64/U (6W), CS-154/U (15W) and CS-304/U (30W). Each includes a built-in 70.7V / 100V transformer with screwdriver-adjustable power taps. All CS models are fully weather-resistant to withstand demanding environmental conditions with a sealed enclosure, full-range moisture-resistant cone speaker, stainless-steel mounting hardware and a protective mesh grille. The enclosure is also coated with polyurethane resin paint to resist the fading effects of prolonged exposure to ultraviolet light. The CS Series Wide-Range Paging Speakers are backed with a five year warranty. Also see the new SC Series Paging Horn Speakers.

Applications:

  • Boats
  • Churches
  • Industrial
  • Mobile Vehicles
  • Parking Facilities
  • Parks
  • Schools
  • Security
  • Sporting Facilities
  • Swimming Pools

Features:

  • Wide-Range Paging Speakers for voice paging, background music and tone signaling distribution.
  • Weather-Resistant to withstand demanding environmental conditions.
  • High Sensitivity: up to 98dB (1W @ 1m).
  • Moisture-Resistant Speaker Component (4.72")
  • Built-In 70.7 V/100V Transformer with screwdriver-adjustable power taps.
  • Lightweight, Sealed Enclosure prevents moisture damage.
  • Cable Strain-Relief
  • Polyurethane Resin Paint resists the fading effects of ultraviolet light.
  • IEC IP-64 Standards Compliant for dust and moisture-resistance.
  • Wide Temperature Range: -4º F to 131º F.
  • Stainless-Steel Mounting Bracket for easy installation and aiming in wall, pole or ceiling-mount applications.
  • Protective Stainless-Steel Mesh Grille prevents speaker damage.
  • Five-Year Warranty

Specifications:

  • Rated Input: 6W
  • Rated Impedance: 100V line: 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)
  • 70 V line: 830Ω (6W), 1.7kΩ (3W), 3.3kΩ (1.5W), 10kΩ (0.5W)
  • Sensitivity: 96dB (1W @ 1m)
  • Frequency Response: 130 - 13,000Hz
  • Speaker Component: 12cm cone-type (treated for splash proof)
  • Speaker Cord: 2-core cabtyre cord with diameter of 6mm
  • Temperature Rang: -20°C to +55°C
  • Finish:
  • Horn, cover: ABS resin, off-white, paint
  • Bracket: Stainless steel
  • Punched net: Surface treated steel plate, dark-gray, powder coating
  • Screw: Stainless steel
  • Dimensions: 233 (W) × 224 (H) × 208 (D) mm
  • Weight: 1.5kgs

Notes:

Do not install the speaker face-up from a horizontal plane nor in such a way that the paper cone is exposed to direct sunlight.

If water accumulates on the paper cone, or ultraviolet rays are radiated on it, this may cause the paper cone to deteriorate, leading to speaker malfunction.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
