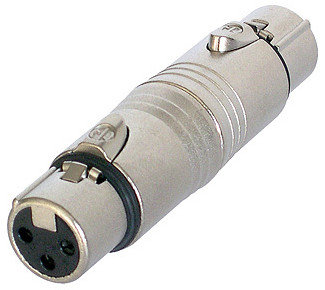

Neutrik NA3F5F 3-pin XLRF to 5-pin XLRF Adapter

The Neutrik NA3F5F is a 3-pin XLR female to 5-pin XLR female wired gender conversion adapter.

Neutrik NA3F5F Features:

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged die-cast shell for best reliability

Neutrik NA3F5F Specifications:

• Electrical:
  • Contact resistance: < / = 3 mOhm (inner)
  • Dielectric strength: 1.5kV dc
  • Insulation resistance: > 2 GOhm
  • Rated current per contact: 3 A
• Mechanical:
  • Insertion force: < 20 N
  • Withdrawal force: < 20 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Latch lock
• Material:
  • Contact plating :2 µm Ag
  • Contacts: Brass (CuZn39Pb3) (5 pole female)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
• Environmental:
  • Temperature range: -30 °C to +80 °C
