Quam 8C10DVPAX
Loudspeaker, 8", Dual Voice Coil


Our Price: $28.77
Buy 12 @ $17.26 ea.
Buy 24 @ $16.11 ea.
Buy 36 @ $14.96 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

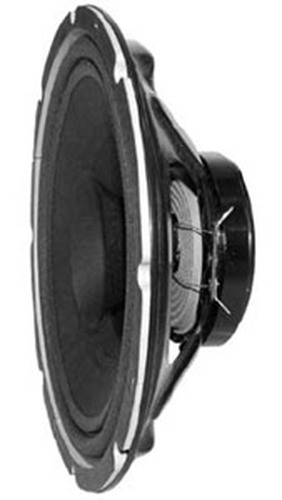

The Quam 8C10DVPAX is an 8” frame loudspeaker with concentric mount hard fiber HF cone and two discrete 8 Ohm voice coils. Finish: Black baked epoxy hybrid.

Intended Use
Replacement loudspeaker that can reproduce sound from two independent audio signals or combined with recommended Quam components to form a complete loudspeaker system; indoor environment

Program Material
Signal tones, voice and music


  • Speaker Size: 8” frame
  • Average Sensitivity: 92 dB SPL, 1W/ 1M
  • Power Rating: 15W RMS, EIA 426A Standard
  • Calculated Output: 105 dB SPL, 20W/ 1M
  • Magnet Type, Weight: BeFe Ceramic, 10 oz. Nominal
  • Frequency Response: 60Hz - 12 kHz EIA 462A Standard
  • Nominal Coverage Angle: 100° Included Angle, -6 dB / 2 kHz, Half space
  • Mounting: 8x 1/4” holes spaced 45° apart on 7-5/8” circle
  • Audio Connections: 0.205” Spade lug, two locations
