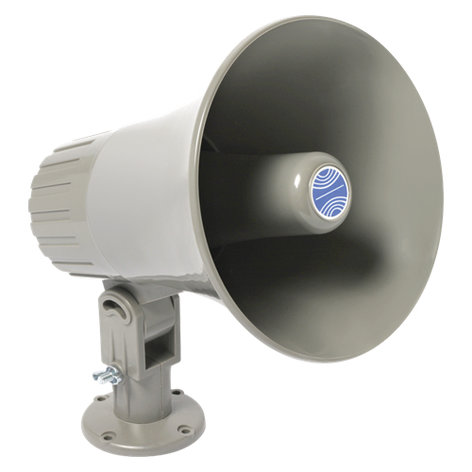

Atlas Sound GA-15T
Utility Paging Re-Entrant Horn Loudspeaker with 25/70V 15W Transformer


The Atlas Sound GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.
Learn More
Our Price: $60.99
List Price: $75.99
You save 20%!
Write the first review.
Atlas Sound GA-15T
In Stock

Related Products

The Atlas Sound GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

The GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21-gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

Entire assembly is gray with silver colored hardware.

Atlas Sound GA-15T Features:

  • Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
  • Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
  • Sturdy Construction for Long-Term Indoor and Outdoor Use

Atlas Sound GA-15T Specifications:

  • Frequency Response: 500 Hz - 3 kHz (+5dB)
  • Power Taps: 0.5, 1, 2, 4, 8, 15W @ 70.7V
  • Dispersion: 80┬░
  • Sensitivity: 103dB
  • Depth: 9-3/8" (23.8125 cm)
  • Diameter: 7-1/2" (19.05 cm)
  • Shipping Weight: 3.63 lbs (1.64 kgs)
