Quam 4C3PA
PA Loudspeaker, 4", 8 Ohm, Square Frame

OUR PART #:  4C3PAB

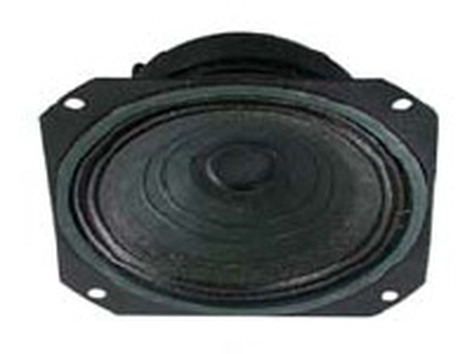

The Quam 4C3PA is a 4” square frame, 8 Ohm loudspeaker with cloth surround. Finish: Black baked hybrid epoxy.
Learn More
Our Price: $14.63
List Price: $17.56
Save up to 31% when you order by quantity!
  • Buy 12: $13.78 each.
  • Buy 24: $12.92 each.
  • Buy 48: $12.05 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Quam 4C3PA
Qty:
Similar Products

The Quam 4C3PA is a 4” square frame, 8 Ohm loudspeaker with cloth surround. Finish: Black baked hybrid epoxy.

Intended Use
Wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker assembly; indoor environment

Program Material
Signal tones, voice and music

Specifications:

  • Speaker Size: 4” Frame
  • Average Sensitivity: 96 dB SPL, 1W / 1M
  • Power Rating: 10W RMS, EIA 426A Std.
  • Calculated Output: 107 dB SPL, 10W / 1M
  • Frequency Response: 80 Hz - 10 kHz EIA 426A Std.
  • Nominal Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half Space
  • Mounting: 4x 1/4” Holes Spaced 90° Apart on 4-11/16” Circle
  • Audio Connection: 0.205” Spade Lug

To be the first to review this item, click here.
