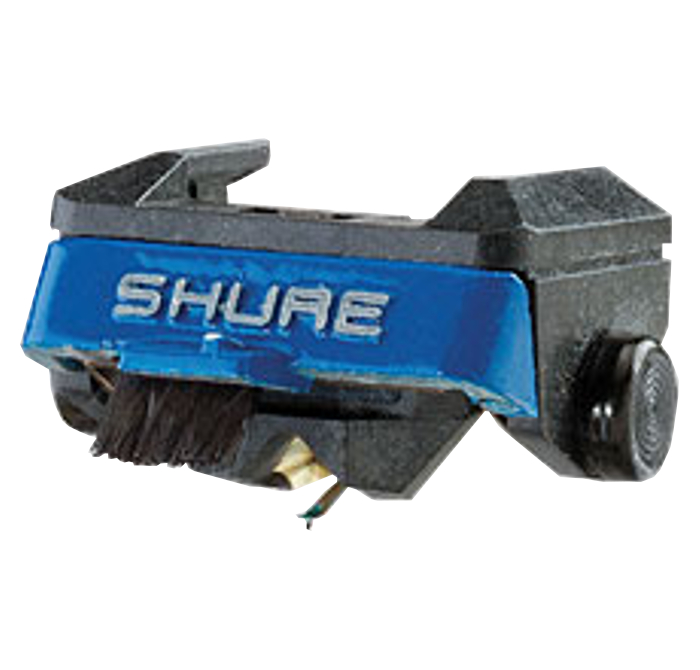

Shure N97XE
Replacement Stylus - Audiophile Hi-Fi Cartridge


* Replacement Stylus for Shure M97XE Cartridges * The M97xE is a superbly tracking, neutral, smooth-sounding magnetic cartridge...
Learn More
Our Price: $59.00
List Price: $85.00
You save 31%!
Write the first review.
Shure N97XE
In Stock

Related Products

* Replacement Stylus for Shure M97XE Cartridges *

The M97xE is a superbly tracking, neutral, smooth-sounding magnetic cartridge, designed to provide long hours of undistorted, easy listening, without fatiguing the ear or tiring the mind.

The Shure M97xE cartridge is able to accurately reproduce very difficult musical passages, particularly in the high-frequency range, where audio modulations are the smallest and most concentrated, and stylus tip movement is consequently the most rapid. The Shure M97xE highly precise tracking ability and flat frequency response are made possible by Shure's M97xE unique Type II low-mass thin-wall aluminum alloy stylus cantilever, combined with a precision-crafted, finely polished, elliptical diamond tip.

Shure N97XE Includes:

  • Headshell Screwdriver
  • Stylus cleaning brush
  • User Guide
  • Mounting hardware
  • Stylus guard

Shure N97XE Features:

  • Dynamic Stabilizer damper/de-statcizer
  • Die cast aluminum mounting block
  • Side Guard stylus protection system

Shure N97XE Specifications:

  • Tone Arm Mount: Standard 1/2"
  • Cartridge Type: Moving magnet
  • Cantilever:
    • Shure Type II - Very low mass
    • Heat-treated aluminum alloy/tubular
    • 1.0 mil wall thickness / 20 mil diameter
  • Diamond Stylus Tip:
    • Polished natural gemstone
    • Elliptical
    • Side x front radii: 0.2 x 0.7 mil
  • Tracking Force:
    • Effective at stylus tip
    • Range: 0.75 to 1.50 grams
    • Optimum: 1.25 grams
  • Trackability @ 1g tracking force (cm/sec peakvelocity):
    • 1 kHz - 44
    • 10kHz - 31
  • Amplitude: 80 micro-m @ 400 Hz
  • Frequency Response: Essentially flat from 20 to 22,000 Hz
  • Stereo Channel Balance: Within 2 dB
  • Channel Separation: Typical at 1 kHz: 25 dB
  • Output Voltage, Typical @ 1 kHz: 4.0 mV RMS @ 5 cm/sec peak velocity
  • Recommended Load: 47 kilohms in parallel with 250 pf
  • Warranty: Full one-year
  • Net Weight: 6.6 grams
  • Height: 15.875 mm
