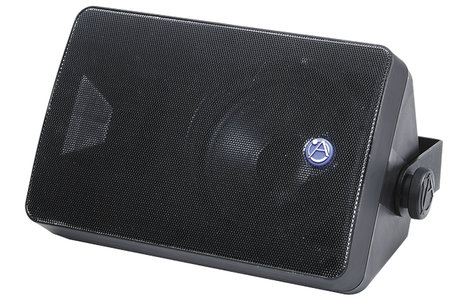

Atlas Sound SM52T-B
5.25" 2-Way Surface Mount Speaker with 70V Transformer

OUR PART #:  SM52T-BLACK

The Atlas Sound SM52T-B environment-resistant loudspeaker system offers quality sound reproduction and contemporary styling in a compact enclosure.
Learn More
Our Price: $160.99
List Price: $201.99
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

Atlas Sound SM52T-B
Qty:
In Stock
Related Products

The Atlas Sound SM52T-B environment-resistant loudspeaker system offers quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and Ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90°H x 90°V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard™ protection circuit. The SM52T-B includes an internally mounted 30 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8 Ohm operation.

Atlas Sound SM52T-B Features:

  • 1" Ferrofluid™ Cooled Dome Tweeter
  • 100HR Salt Spray Test Per ASTM B117
  • All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
  • Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
  • Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
  • Color Matched Heavy-Duty Zinc Chromate Plated &Powder Coated "C" Bracket (Included)
  • Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
  • Five-Year Warranty
  • Highly Efficient 5.25" Polypropylene Woofer
  • Screwdriver Adjustable 30-Watt 70.7V/100V Transformer for Distributed Sound Applications and an 8 Ohm bypass
  • Weather-Resistant Construction for Year-Round Indooror Outdoor Use: UV-Resistant Talc Impregnated Polypropylene, Injection Molded,Weatherproof Enclosure Powder Coated Aluminum Grilles and All Brass Hardware Inserts
  • OMNIMOUNT™ Compatible

Atlas Sound SM52T-B Specifications:

  • Power Rating (RMS):  100 Watts
  • Frequency Response:  85 Hz - 20 kHz (±3dB)
  • Sensitivity (1W/1M):  90dB
  • Woofer Size:  5.25"
  • Woofer Cone:  Polypropylene
  • Woofer Surround:  Rubber
  • Woofer Magnet:  20 oz
  • Tweeter Size:  1" (25mm)
  • Tweeter Diaphragm:  Material Mylar
  • Tweeter Magnet:  1.39 oz
  • Crossover Frequency:  5 kHz
  • Crossover Type:  1st Order Low Pass, 2nd OrderHigh Pass
  • Transformer Taps:  70.7V .94, 1.9, 3.7, 7.5,15,30 Watts, & 8 Ohm Bypass
  • Height:  10-3/16" (285mm)
  • Width:  6-7/8" (175mm)
  • Depth:  5-7/8" (148mm)
