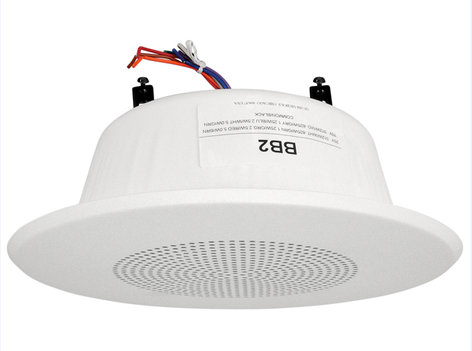

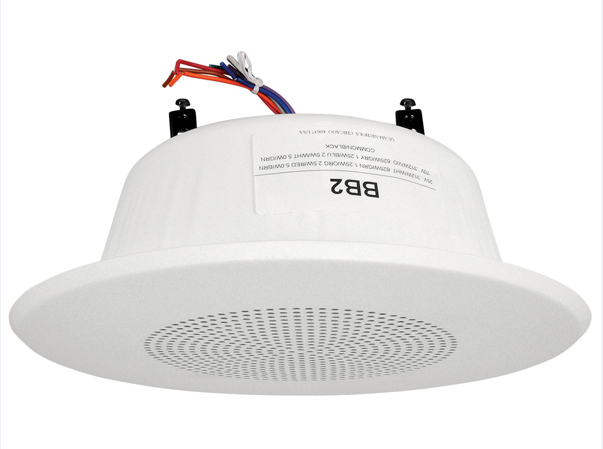

Quam BB2 8" Beam Mount Loudspeaker Assembly, 5W 25/70.7V Transformer, White Powder Finish

The Quam BB2 is a complete beam mounted loudspeaker assembly with an 8" O.D. full-range speaker, performated 22 gauge steel baffle, two beam clamps, 16 gauge steel back box, and a 5W* 25V / 70.7V transformer with pig tail.

*5W, 2.5W, 1.25W, 0.63W, 0.31W

Finish: White baked epoxy hybrid.

Intended Use

• Mounted to a steel “I” beam of 5.25” maximum width, downward firing in an indoor environment
• Signal tones, voice and music

Quamm BB2 Specifications:

• Average Sensitivity: 95 dB SPL, 1W/ 1M
• Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
• Calculated Output: 102 dB SPL, 5W/1M
• Magnet Type, Weight: BeFe Ceramic, 10 oz. Nominal
• Frequency Response: 65Hz - 17 kHz EIA 462A Standard
• Nominal Coverage Angle: 90° Included angle, -6 dB / 2 kHz, Half space
• Audio Connection: 7” color-coded pigtails, pre-cut
