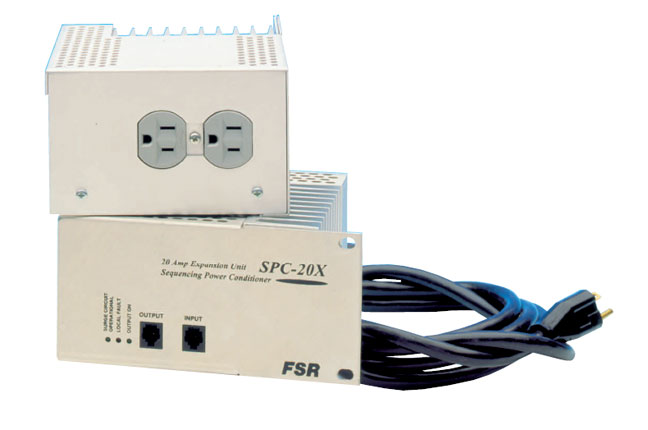

FSR, Inc SPC20X
Power Expansion Unit 20 amp

OUR PART #:  SPC20X

The SPC-20X is the expansion unit to the SPC-20 and provides sequential switching of one load (amplifiers, etc.). It is controlled by the SPC-20.
Learn More
Our Price: $290.29
List Price: $319.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

FSR, Inc SPC20X
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SPC-20X is the expansion unit to the SPC-20 and provides sequential switching of one load (amplifiers, etc.). It is controlled by the SPC-20. An unlimited number of SPC-20X's can be used in an installation. Each SPC-20X can switch 20 amps of 120-volt AC power.

Specifications:

  • AC SWITCHING: Solid state zero crossing (no relay contacts that bounce, arc, and pit)
  • AC INPUT: Full line conditioning and RFI suppression
  • AC OUTLETS: Surge suppression on all outlets
  • SURGE PROTECTION:
      -  Spike protection modes: Line to neutral, neutral to ground, line to ground
      -  Spike protection voltage: Max clamping voltage 340V peak, L-N, N-G, L-G
      -  Response time: 1 nanosecond
      -  Maximum surge current: >29,000 AMPS (8 x 20 usec pulse)
      -  Maximum spike energy: 200 joules
      -  Noise attenuation: Differential 13 dB @ 150 kHz increasing to 45 dB @ 30 Mhz
      -  Common mode: 15dB @ 150 kHz, increasing to >45dB @ 30 Mhz
  • LISTING: UL
  • SIZE: 6” wide, 5.5” high, and 3” deep.
  • WEIGHT: 14 lbs.
