Rolls SX21 Tiny 2-Way Crossover Frequency Divider

OUR PART #: SX21 MFR #: sx21

Write the First Review
Copied to clipboard

The Rolls SX21 is a 24dB/Octave two-way frequency divider intended for small sound reinforcement applications. ...Read more

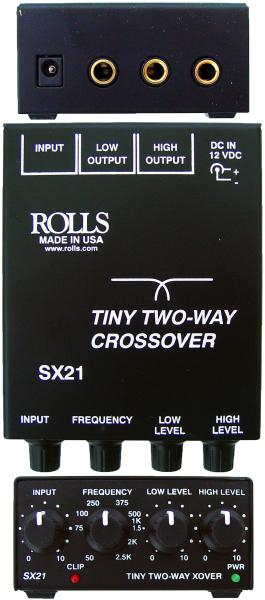

Rolls SX21 Tiny 2-Way Crossover Frequency Divider Image 1
Rolls SX21 Tiny 2-Way Crossover Frequency Divider Image 2
Rolls SX21 Tiny 2-Way Crossover Frequency Divider Image 3
Rolls SX21 Tiny 2-Way Crossover Frequency Divider
More Rolls products
Our Price: $109.00
List Price: $150.00
You save 27%!
Price-Matching Symbol. Low Price Guaranteed
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months †
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.
Free Shipping Available Item Ships FREE
Request a Quote Add to Wish List

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Rolls SX21 is a 24dB/Octave two-way frequency divider intended for small sound reinforcement applications. It has Input, Low and High Output jacks, and Input, Crossover Frequency, Low and High Output controls. It is powered by 12 to 16 volts DC and the adapter is included.

Rolls SX21 Features:

  • 24 dB/Octave rolloff
  • 1/4" unbal. Input and Outputs
  • 50Hz to 2.5 kHz crossover range (may be factory modified)
  • External power supply for low noise operation

Rolls SX21 Specifications:

  • Input Impedance: 10 kOhm
  • Output Impedance: 1 kOhm
  • Headroom: +10dBV
  • Power Requrements: 12 - 16 VDC, 150 mA; Rolls part number PS27
  • Dimensions: 4.25" x 3.625" x 1.5"
  • Weight: 1 lb.
