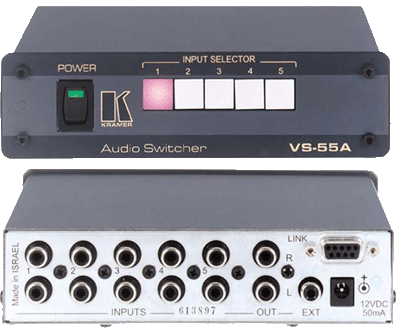

Kramer VS-55A
5x1 Stereo Audio Switcher

OUR PART #:  VS55A

The VS-55A is high performance switcher for unbalanced stereo audio signals. It switches any one of five signals to a single output. Features: S/N Ratio - > 78dB.
Learn More
Our Price: $224.00
List Price: $280.00
You save 20%!
Write the first review.
Kramer VS-55A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VS-55A is high performance switcher for unbalanced stereo audio signals. It switches any one of five signals to a single output.

Features:

  • S/N Ratio - > 78dB.
  • Control - Front panel   contact closure (via link connector).
  • Desktop Size - Compact size.
  • Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-50RN adapter.

Specifications:

  • Inputs:   5 audio stereo - 1Vpp/50 k ohm; on RCA connectors.
  • Output:   1 audio stereo - 1Vpp/100 ohm; on RCA connectors.
  • Max Audio Output:   3 Vpp/100 ohm;.
  • Audio Bandwidth (-3dB):   100kHz.
  • Gain Range:   60dB (via underside accessible trimmers).
  • Audio S/N Ratio:   Better than 78dB.
  • Control:   5 front-panel touch switches, contact closure via the link connector.
  • THD:   Less than 0.08%.
  • Power Source:   12VDC, 100mA.
  • Dimensions:   6.5” x 4.7” x 1.8” (16.5cm x 12cm x 4.5cm)
  • Weight:   1.4 lbs (0.62kg) approx.
  • Accessories:   12VDC power supply.
  • Options:   RK-50RN, 19 inch rack adapter.
