Kramer VP-41 4x1 Computer Graphics Video Mechanical Switcher

OUR PART #: VP41 MFR #: 51-0075099

Copied to clipboard

The Kramer VP-41 is a high performance mechanical 4x1 switcher for VGA/XGA signals. ...Read more

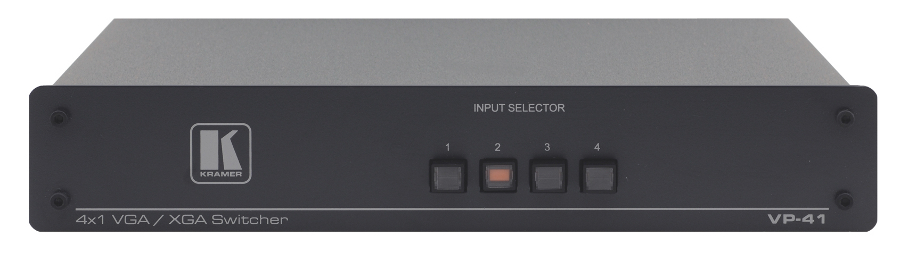

Kramer VP-41 4x1 Computer Graphics Video Mechanical Switcher Image 1
Kramer VP-41 4x1 Computer Graphics Video Mechanical Switcher Image 2
Kramer VP-41 4x1 Computer Graphics Video Mechanical Switcher Image 3
Kramer VP-41 4x1 Computer Graphics Video Mechanical Switcher
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Kramer VP-41 is a high performance mechanical 4x1 switcher for VGA/XGA signals. It is designed to route one of up to four inputs to one output using 15pin HD female connectors. Bandwidth of 750MHz ensures transparent performance even at the highest resolution UXGA modes (1600 x 1200.) High quality switching components provide excellent isolation between inputs.

The VP-41 is extremely rugged and dependable. Its unpowered, passive design is an advantage in applications where various regulatory compliances would otherwise be required. The passive “hard-wire” signal path offers very high bandwidth and can also switch other signal formats. It is housed in a desktop enclosure and one unit can be rack mounted in a 1U rack space with the optional RK-81X adapter.

Features

  • HDTV Compatible
  • Mechanical (Passive) Switching - No power required.

Specifications

  • Inputs: 4 VGA/XGA on HD 15F connectors
  • Outputs: 1 VGA/XGA on an HD 15F connector
  • Video Bandwidth (-3dB): 750 MHz
  • Switch Control: Four front panel switches
  • Crosstalk: -58dB at adjacent channels @ 10MHz
  • Coupling: Direct
  • Dimensions (W x D x H): 10" x 4" x 1.8"
  • Weight: 2.4 lbs approx.
  • Options: RK-81X 19 inch rack adapter
