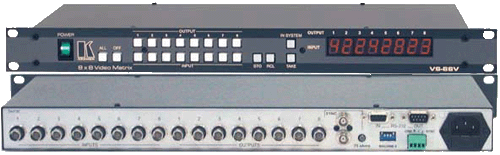

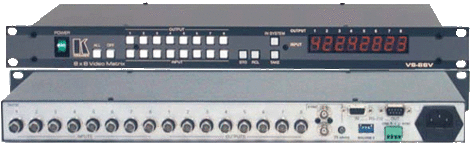

Kramer VS88V
Switcher, 8x8 Composite Video

OUR PART #:  VS88V

The VS-88V is a high performance matrix switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
Learn More
Our Price: $1,124.00
List Price: $1,405.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS88V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-88V is a high performance matrix switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Bandwidth - 200MHz (- 3dB) fully loaded.  Control - Front panel, RS-232 (K-Router™ Windows® - based software is included),   RS-485.   Take Button - Execute multiple switches all at once.  Memory Locations - Store multiple switches as presets to be recalled and executed when needed.  Audio Breakaway Switching.  Vertical Interval Switching.  Switching Synchronization - Synchronize either to external reference or the incoming video.  Looping Sync Input.  Selectable Sync Signal Termination. Worldwide Power Supply - 84-264V AC.  Standard 19” Rack Mount Size - 1U

INPUTS:   8 composite video, 1Vpp/75 ohm; on BNC connectors, looping analog sync inputs 1Vpp/75 ohm; on BNC connectors.   OUTPUTS:   8 composite video, 1Vpp/75 ohm; on BNC connectors.   VIDEO BANDWIDTH(-3dB):   200MHz.   DIFF. GAIN:   0.05%.   DIFF. PHASE:   0.03 Deg.   K-FACTOR:   0.05%.   VIDEO S/N:   74dB.   VIDEO CROSSTALK:   -50dB @ 5MHz.   SWITCHING:   During vertical interval from analog sync.   CONTROLS:   22 front-panel touch switches, RS-232 and RS- 485 control interface.   DISPLAY:   Current switcher status on 8 7-segment bright LEDs.   POWER:   Universal, 85-264 VAC, 47- 440 Hz, 25 VA max.   DIMENSIONS:   19-inch (W) x 7-inch (D) x 1U (H), rack mountable.   WEIGHT:   3.5kg. (7.8 lbs.) approx.   ACCESSORIES:   Power cord, Windows 95/98 control software, null modem adapter
