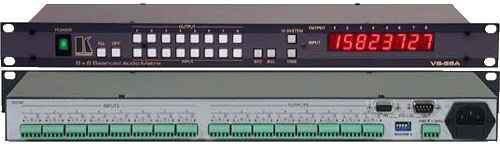

Kramer VS-88A/110V 8x8 Balanced Stereo Audio Matrix Switcher

OUR PART #: VS88A MFR #: 21-0455010

Copied to clipboard

The VS-88A is a high performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously. ...Read more

Kramer VS-88A/110V 8x8 Balanced Stereo Audio Matrix Switcher Image 1
Kramer VS-88A/110V 8x8 Balanced Stereo Audio Matrix Switcher
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The VS-88A is a high performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously.

Features

  • S/N Ratio - 84dB unweighted (1Vpp).
  • Control - Front panel, RS-232 (K-Router™ Windows® - based software is included), RS- 485.
  • Take Button - Execute multiple switches all at once.
  • Memory Locations - Store multiple switches as presets to be recalled and executed when needed.
  • Worldwide Power Supply - 85-264V AC.
  • Standard 19” Rack Mount Size - 1U.

Specifications

  • Inputs: 8 balanced audio stereo, + 4dBm/33k ohm; on detachable terminal blocks.
  • Outputs: 8 balanced audio stereo, + 4dBm/50 ohm; (20 Vpp max) on detachable terminal blocks.
  • Audio Bandwidth (-3dB): 100 kHz.
  • Audio S/N: 84 dB unweighted (1Vpp).
  • Control: 22 front panel touch switches, RS-232 and RS-485 control interface.
  • Audio THD: 0.025% (1Vpp, 1kHz).
  • 2nd Harmonic: 0.013%.
  • Maximal Audio: >20dBm.
  • Display: Current switcher status on 8 7-segment bright LEDs.
  • Power: Universal, 85-264 VAC, 47- 440 Hz, 25 VA max.
  • Dimensions: 19-inch (W) x 7-inch (D) x 1U (H), rack mountable.
  • Weight: 7.8 lbs (3.5kg) approx.
