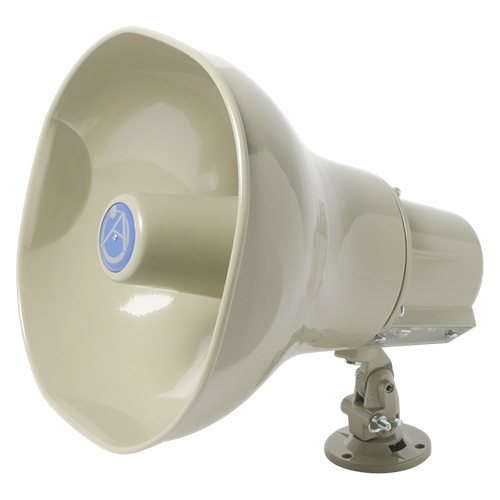

Atlas Sound AP-30TC
Omni-Purpose Loudspeaker 30-W., w/Xfmr. (25/70.7/100V) Beige


The Atlas Sound AP-30TC is a double re-entrant loudspeaker which delivers 30 watts of continuous power handling...
Learn More
Our Price: $137.99
List Price: $172.99
You save 20%!
Write the first review.
Atlas Sound AP-30TC
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound AP-30TC is a double re-entrant loudspeaker which delivers 30 watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency. The AP-30TC operates within a nominal frequency range of 300Hz - 12kHz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.

The AP-30TC each features an integral transformer to meet a variety of distributed system needs. The AP-30T is equipped with a versatile, 3-way, 25, 70.7, 100V line transformer. Transformer is adjustable using Atlas Sound's exclusive Vari-Tap® Connect Center which features a 7-position, watts / impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.

The trademarked square bell design signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the loudspeaker on conventional surfaces or by strap-mounting to I-beams or pillars. AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy (standard) or beige epoxy if suffixed with (C) where noted.

Atlas Sound AP-30TC Features:

  • Beige Finish
  • Environment Resistant for Outdoor & Indoor Use
  • Omni-Purpose Mounting Bracket for Precise Positioning
  • Superior Intelligibility for Voice and Tone Signaling
  • Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
  • U. S. Trademark Design is World Recognized for Quality and Dependability
  • Wide Frequency Response for Optimum Sound Quality

Atlas Sound AP-30TC Specifications:

  • Frequency Response:  300 Hz - 12 kHz
  • Impedance:  25, 70.7, 100V
  • Dispersion:  60°
  • Power Rating:  30 Watts
  • Sensitivity:  108dB
  • Operating Range:  -40° to 70°C
  • Height:  11" (27.94 cm)
  • Width:  10" (25.4 cm)
  • Depth:  10-1/2" (26.67 cm)
  • Shipping Weight:  6.30 lbs (2.86 kgs)
