Audio Technologies Inc. HDA600
6-Channel Studio Headphone Amplifier

OUR PART #:  HDA600

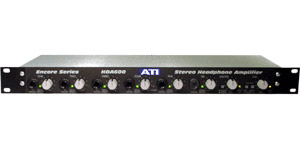

The HDA600 is a rugged, AC powered headphone amplifier that will provide excellent performance driving a wide range of typical stereo headphones.
Learn More
Our Price: $974.78
List Price: $999.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio Technologies Inc. HDA600
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HDA600 is a rugged, AC powered headphone amplifier that will provide excellent performance driving a wide range of typical stereo headphones. It will drive the usual 32 to 600 ohm high efficiency stereo headphones to teeth rattling levels near 120dB SPL with a combination of high output voltage swing (16Vp-p) for high impedance phones and a protected high current capability (.2Ap-p) for low impedance phones. It will do the above at distortion levels below .10% and response flat to .25db both measured over the full frequency range of 20Hz to 20kHz.

The HDA600 provides a stereo program input plus a mono cue input driving six stereo headphone output drivers. The HDA600 will bridge both balanced and unbalanced program input lines with individual left and right XLR and ┬╝ inch TRS input connectors. The spare connector set may be used to loop-through the input signal to additional HDAs. Inputs are electronically balanced but will operate properly when an unbalanced ┬╝ inch plug is inserted. An internal input stage gain selector plug (P2) optimizes the input stage gain for either -10dBu or +4dBu nominal inputs or the program INPUT CLIP indicator shows input overdrive. A MASTER LEVEL control and MONO/STEREO switch adjust the program signal fed to all output channels via an internal stereo distribution buss. The MONO/STEREO switch allows a quick check of the mono compatibility of a stereo mix and allows two separate mono signals, applied to the stereo inputs, to be easily summed for monitoring.

Features:

  • Mono/Stereo Switch
  • Direct Input/Output Level Controls
  • Signal Present Indicators
  • Input Program & Cue Clipping Indicators
  • Mono Cue Input
  • Internal Power Supply
