Kramer VS601XLM
Switcher, 6x1 BNC Composite Video, audio Switcher

OUR PART #:  VS601XLM

The VS-401xlm, VS-601xlm, VS-801xlm, VS-1001xlm, and VS-1201xl are high performance switchers for composite video and unbalanced audio signals.
Learn More
Our Price: $576.00
List Price: $720.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS601XLM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

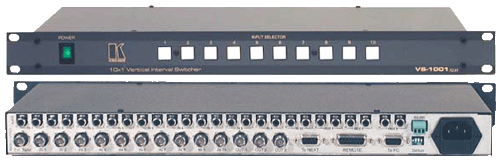

The VS-401xlm, VS-601xlm, VS-801xlm, VS-1001xlm, and VS-1201xl are high performance switchers for composite video and unbalanced audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

High Bandwidth - 400MHz (- 3dB) for XLM  250MHz for VS-1201xl.  Vertical Interval Switching.  Switching Synchronization - Synchronize either to external reference or the incoming video.  Control - Front panel RS-232 K-Router™ Windows® - based software is included), RS- 485,  contact closure.  Outputs - 3 audio  video (xlm models).  Standard 19” Rack Mount Size - 1U.

INPUTS:   12, 10, 8, 6, 4 composite/single component video, 1Vpp/75ohm;, on BNC connectors. 12, 10, 8, 6, 4 audio stereo, + 4dBm, 10kohm;, on RCA connectors. 1 external sync input (or composite video) 1Vpp/75ohm;, on a BNC connector.   OUTPUTS:   1 x 3 (xlm)/1(xl) composite/single component video, 1Vpp/75ohm; on BNC connectors. 1 x 3 (xlm)/ 1 (xl) audio stereo up to + 28Vpp/50ohm;, (24dBm) on an RCA connector.   VIDEO BANDWIDTH (-3dB):   250 MHz, 1201xl. 400MHz, 1001xlm - 401xlm.   AUDIO BANDWIDTH (-3dB):   55 kHz.   DIFF. GAIN:   0.04%.   DIFF. PHASE:   0.03 Deg.   K-FACTOR:   0.05%.   VIDEO S/N:   77.6 dB.   AUDIO S/N RATIO:   90.3dB Unweighted.   NON LINEARITY:   Less than 0.1%.   AUDIO CROSSTALK:   -79dB.   CONTROL:   12 illuminated front-panel touch switches, RS-232, RS-422, contact closure.   AUDIO THD+NOISE:   0.02%.   2nd HARMONIC:   0.003% (1kHz).   POWER SOURCE:   230 VAC, 50/60 Hz, (115VAC U.S.A.) 16 VA (VS-1211).   DIMENSIONS:   19 inch (W), 7 inch (D) 1U (H) rack mountable.   WEIGHT:   3.1 kg (6.88 lbs.) approx.   ACCESSORIES:   Power cord, Windows® - based control software, Null modem adapter.
