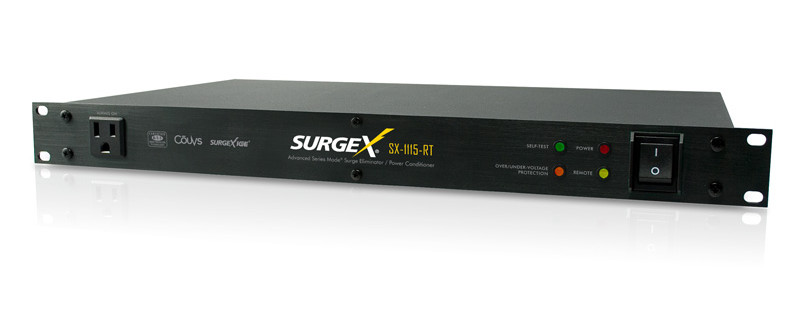

SurgeX SX1115RT
8-Outlet Surge Suppressor and Power Conditioner

OUR PART #  SX1115RT

Our Price: $699.00
(Low Price Guarantee)
In Stock

The SX1115-RT provides guaranteed surge protection and power conditioning for audio, video and computer equipment. The units are 20-amp load-capable and have 8 standard grounded AC receptacles (6 switched, 2 always on) plus a front-panel courtesy outlet.

SurgeX Advanced Series Mode surge suppression technology is superior to conventional MOV circuitry and MOV-hybrid designs. It has zero let-through voltage, provides reliable protection, and stops multiple surges of up to 6,000 volts and unlimited surge current without producing ground contamination or common-mode disturbances.

The units also feature advanced Impedance Tolerant EMI/RFI filtering circuitry for additional power conditioning, and COUVS catastrophic over/ under-voltage shutdown circuitry to prevent damage from brownouts and line-fault events.

The SX1115-RT meets the most demanding government purchase specifications for branch circuit surge suppressors. Its A-1-1 rating means dependable protection from destructive spikes, surges and inductive transients.

SurgeX SX1115-RT Features:

  • Made in U.S.A.
  • Magnetic shielding steel enclosure
  • 9' grounded 3-wire #12 line cord
  • 8 grounded AC outlets on rear panel (6 switched, 2 always on)
  • Front panel courtesy outlet
  • Advanced Series Mode surge protection
  • Advanced Impedance Tolerant EMI/RFI filtering
  • SurgeX ICE inrush current elimination technology
  • COUVS catastrophic over/under-voltage shutdown
  • Remote turn-on
  • Thermal circuit breaker overload protection
  • Self-test circuit with visual indicator

SurgeX SX1115-RT Specifications:

  • Load Rating: 20 amps @ 120 volts
  • Power Requirement (no load): 15 watts
  • Surge Let-Through Voltage (6000-volt surge): 0 volts
  • UL 1449 Adjunct Classification Test Results: 1000surges, 6000 volts, 3000 amps, B3 pulse.
    • Measured suppressed voltage: 170volts, no failures
  • Federal Guidelines: Grade A, Class 1, Mode 1 (CIDA-A-55818)
  • EMI/RFI Filter, Normal Mode (50-ohm load): 40 dB @100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz
  • EMI/RFI Filter, Common Mode (50-ohm load): 18 dB @300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz
  • Maximum Applied Surge Voltage: 6000 volts*
  • Maximum Applied Surge Current: Unlimited, due to current limiting*
  • Maximum Applied Surge Energy: Unlimited, due to current limiting*
  • Endurance (C62.41-1991 Category B3 pulses): 1kV>500,000; 3 kV>10,000; 6 kV>1000
  • Undervoltage Shutdown: 90 volts (resume at 100 v)
  • Overvoltage Shutdown: 145 volts (resume at 135 v)
  • Maximum Load Inrush Current During Power-up: 1000Joules
  • Remote Turn-on Applied Voltage Range: 5 to 30 voltsDC
  • Remote Turn-on Current Draw:
        * Contact Closure: 3mA
        * 5 V DC Applied Voltage: 1 mA
        * 12 V DC Applied Voltage: 2.5 mA
        * 24 V DC Applied Voltage: 5 mA
  • Auxiliary Relay Contact Rating: 30 Volts at 1 Amp
  • LED Output: 12 volts DC, maximum 20 mA (resistor required)
  • Temperature Range: 5º to 35º C
  • Humidity Range: 5% to 95% r.h., non-condensing
  • Agency Listings: ETL (UL 1449-2)
  • Dimensions (H x W x D): 1.75" x 19" x 10.5" (4.5 x48.3 x 26.7 cm)
  • Weight: 11 lbs. (5 kg)

SurgeX SX1115RT
8-Outlet Surge Suppressor and Power Conditioner

OUR PART #  SX1115RT

Product Information:

The SX1115-RT provides guaranteed surge protection and power conditioning for audio, video and computer equipment. The units are 20-amp load-capable and have 8 standard grounded AC receptacles (6 switched, 2 always on) plus a front-panel courtesy outlet.

SurgeX Advanced Series Mode surge suppression technology is superior to conventional MOV circuitry and MOV-hybrid designs. It has zero let-through voltage, provides reliable protection, and stops multiple surges of up to 6,000 volts and unlimited surge current without producing ground contamination or common-mode disturbances.

The units also feature advanced Impedance Tolerant EMI/RFI filtering circuitry for additional power conditioning, and COUVS catastrophic over/ under-voltage shutdown circuitry to prevent damage from brownouts and line-fault events.

The SX1115-RT meets the most demanding government purchase specifications for branch circuit surge suppressors. Its A-1-1 rating means dependable protection from destructive spikes, surges and inductive transients.

SurgeX SX1115-RT Features:

  • Made in U.S.A.
  • Magnetic shielding steel enclosure
  • 9' grounded 3-wire #12 line cord
  • 8 grounded AC outlets on rear panel (6 switched, 2 always on)
  • Front panel courtesy outlet
  • Advanced Series Mode surge protection
  • Advanced Impedance Tolerant EMI/RFI filtering
  • SurgeX ICE inrush current elimination technology
  • COUVS catastrophic over/under-voltage shutdown
  • Remote turn-on
  • Thermal circuit breaker overload protection
  • Self-test circuit with visual indicator

SurgeX SX1115-RT Specifications:

  • Load Rating: 20 amps @ 120 volts
  • Power Requirement (no load): 15 watts
  • Surge Let-Through Voltage (6000-volt surge): 0 volts
  • UL 1449 Adjunct Classification Test Results: 1000surges, 6000 volts, 3000 amps, B3 pulse.
    • Measured suppressed voltage: 170volts, no failures
  • Federal Guidelines: Grade A, Class 1, Mode 1 (CIDA-A-55818)
  • EMI/RFI Filter, Normal Mode (50-ohm load): 40 dB @100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz
  • EMI/RFI Filter, Common Mode (50-ohm load): 18 dB @300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz
  • Maximum Applied Surge Voltage: 6000 volts*
  • Maximum Applied Surge Current: Unlimited, due to current limiting*
  • Maximum Applied Surge Energy: Unlimited, due to current limiting*
  • Endurance (C62.41-1991 Category B3 pulses): 1kV>500,000; 3 kV>10,000; 6 kV>1000
  • Undervoltage Shutdown: 90 volts (resume at 100 v)
  • Overvoltage Shutdown: 145 volts (resume at 135 v)
  • Maximum Load Inrush Current During Power-up: 1000Joules
  • Remote Turn-on Applied Voltage Range: 5 to 30 voltsDC
  • Remote Turn-on Current Draw:
        * Contact Closure: 3mA
        * 5 V DC Applied Voltage: 1 mA
        * 12 V DC Applied Voltage: 2.5 mA
        * 24 V DC Applied Voltage: 5 mA
  • Auxiliary Relay Contact Rating: 30 Volts at 1 Amp
  • LED Output: 12 volts DC, maximum 20 mA (resistor required)
  • Temperature Range: 5º to 35º C
  • Humidity Range: 5% to 95% r.h., non-condensing
  • Agency Listings: ETL (UL 1449-2)
  • Dimensions (H x W x D): 1.75" x 19" x 10.5" (4.5 x48.3 x 26.7 cm)
  • Weight: 11 lbs. (5 kg)
