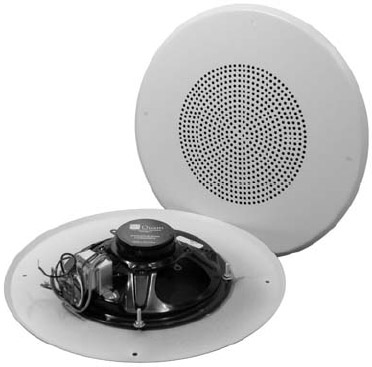

Quam C5/B25/W
8" Loudspeaker w/ 25V Transformer & Screw-Mount Baffle

OUR PART #  C5/B25/W

Our Price: $23.94
List Price: $32.56
You save 26%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Quam C5/xx/ Wx/x is a complete loudspeaker assembly, with 8” frame, 12W dual-cone loudspeaker, steel baffle as specified; transformer and volume control as specified. Finish: White baked epoxy hybrid.

Baffle: Screw Mount

Transformer: 25V

Intended Use
All variants: Interior environment, Downward facing, ceiling mounted, Program Material: Signal tones, voice and music

Specifications:

  • Speaker Size: 8” frame
  • Average Sensitivity: 98 dB SPL, 1W/ 1M
  • Power Rating: 12W RMS, EIA 426A Standard
  • Calculated Output: 108dB SPL, 10W/ 1M
  • Magnet Type, BeFe Ceramic, 4.8 oz. Nominal Weight
  • Frequency Response: 65 Hz - 17 kHz
  • Nominal Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half space
  • Audio Connection 7” long, color-coded tinned wires, pre-cut
8"Speakr with 25v. Transformer
Quam 8C5PAX/TBL25B 8"Speakr with 25v. Transformer
This loudspeaker meets the needs of a broad range of commercial background music reproduction systems. A hard fiber “whizzer” cone provides extended high frequency response with fine clarity, while the molded fiber moisture resistant ...
19.13 24.40 Save up to 36% when you order by quantity!
Buy 12 @ $17.94 ea.
Buy 24 @ $16.74 ea.
Buy 36 @ $15.55 ea.
In Stock
8" Backbox for Speaker Installation, Round
Quam ERD8 8" Backbox for Speaker Installation, Round
The Quam ERD-8 is a round, steel loudpseaker back box. A circular, molded expanded polystyrene damping pad is fitted to the inside top of the enclosure. Four welded hanger straps. UL listed  (UUMW) Finish: white baked epoxy ...
17.90 18.28
In Stock
Suspended Ceiling T-bar Support Bridge for 8" Speakers
Quam SSB2 Suspended Ceiling T-bar Support Bridge for 8" Speakers
The Quam SSB-2 speaker support bridges are universal loudspeaker-baffle mounting devices that eliminate tile sag caused by the weight of the installation on suspended ceiling, markedly reduce the required installation time and eliminate ...
9.90 10.10
In Stock
Ceiling Baffle for 8" Speaker, White Steel
Quam BR8W Ceiling Baffle for 8" Speaker, White Steel
The Quam BR8W is a 22-gauge steel, round speaker baffle with 4 supplied "white-head" 8-31 x 1" Phillips truss head mounting screws through the baffle. Finish: White baked epoxy hybrid.Features: One piece construction 22-gauge Steel ...
9.31 9.50
In Stock
Bridge Support for 8" Baffle
Quam SSB3 Bridge Support for 8" Baffle
Quam SSB3 Features: “Load Bearing” device designed to eliminate ceilingtile or drywall sagRust-resistant metal eliminates hazards of combustion and toxic fume release Will accommodate ERD8 and ERD8U backboxes Designed to reduce ...
7.90 8.06
In Stock
